Pixel Perfect LED VIdeo Wall Display Solutions

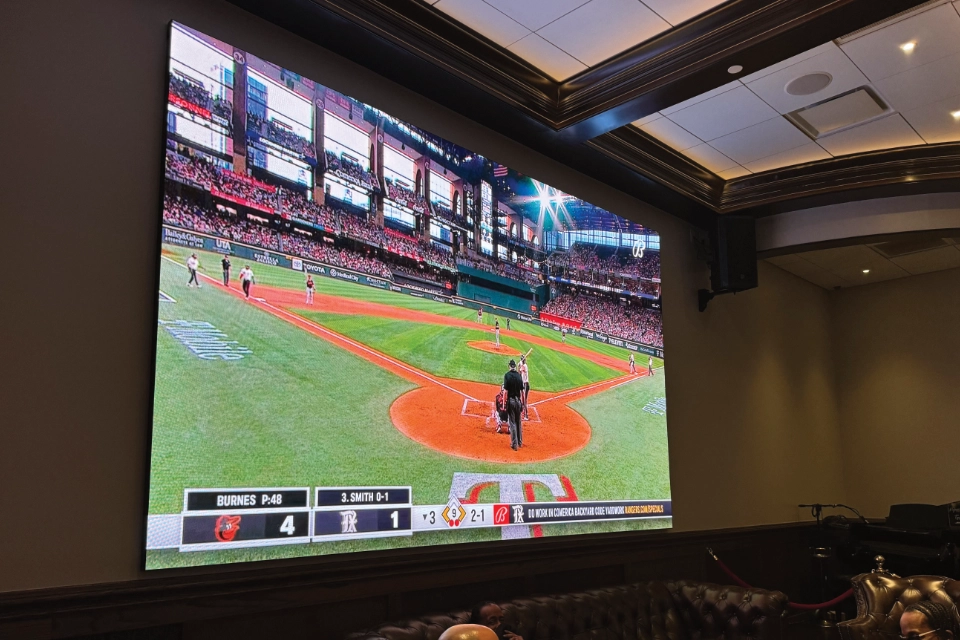

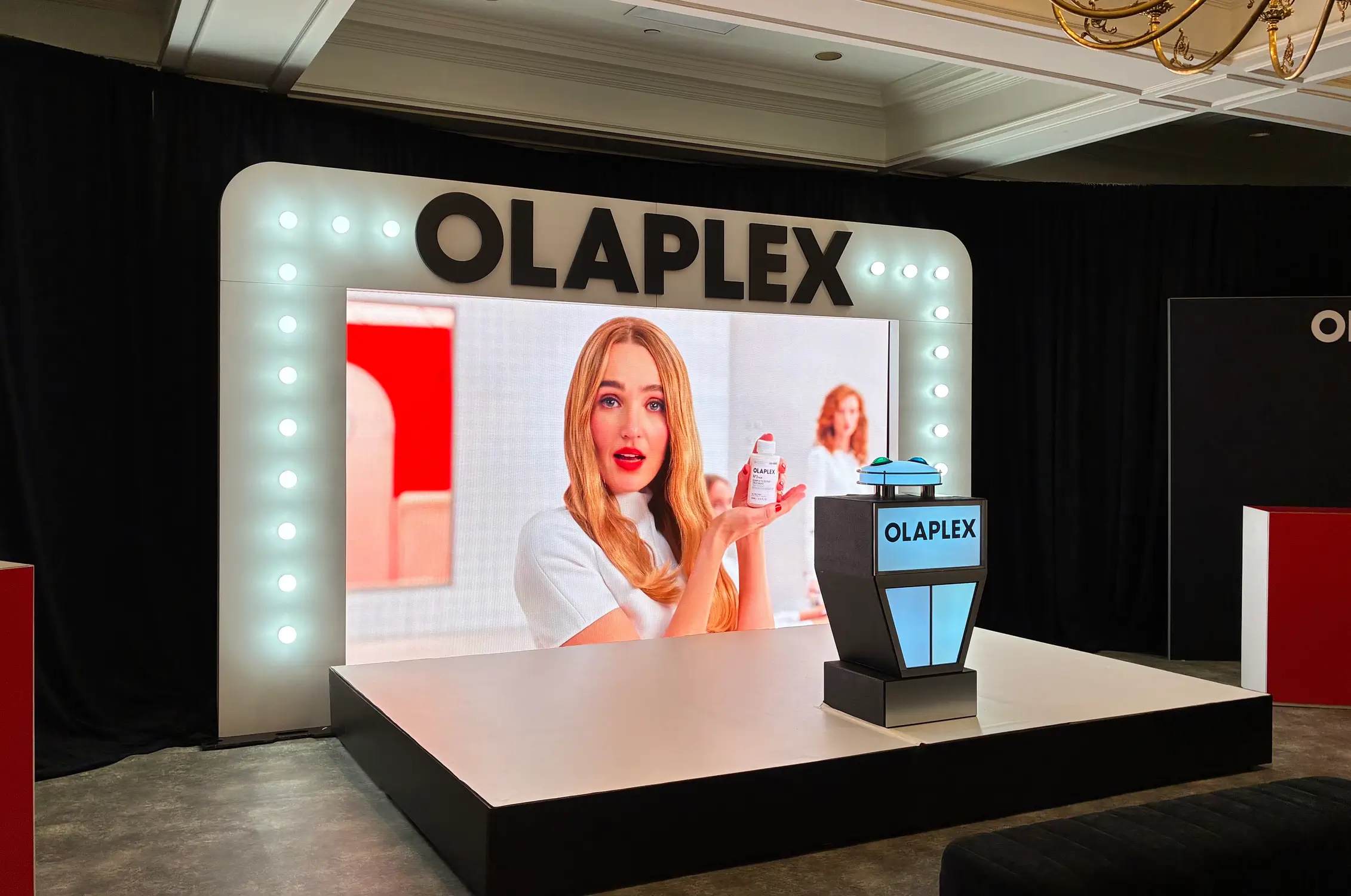

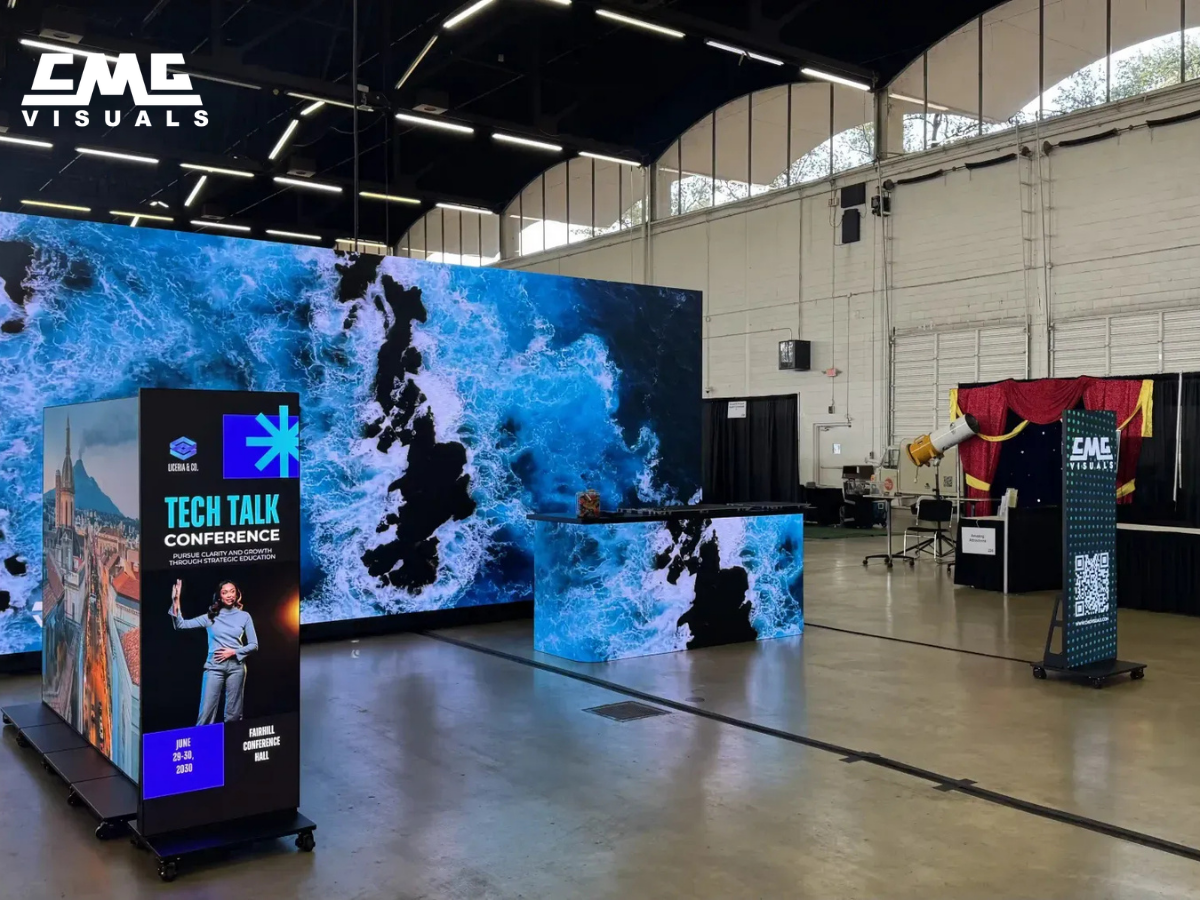

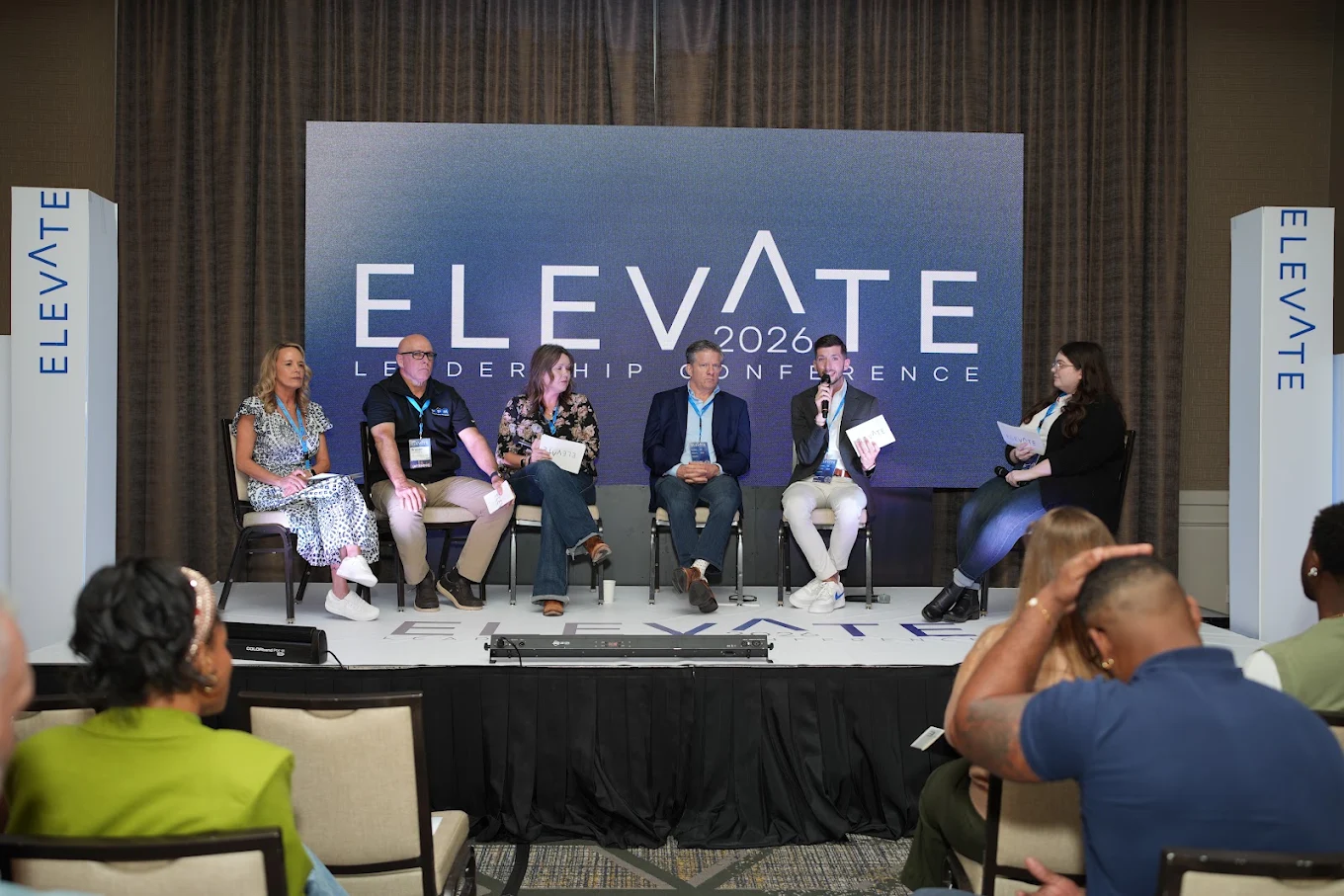

An LED video wall is a display made of multiple LED panels seamlessly tiled together to create one large, high-definition screen—ideal for impactful visual presentations.

Pixel pitch is the distance (in millimeters) between LED pixels—smaller values (e.g., 1.9 mm vs. 3.9 mm) mean higher resolution and clarity at closer viewing distances

Choose pixel pitch based on viewing distance: closer audiences require finer pitch (1–3 mm), while larger venues with distant viewing can opt for broader pitch (3–6 mm+) .

Yes—many manufacturers support curved, corner, or freeform configurations. They offer flexible panel designs and controllers to create unique shapes .

A video controller (or processor) scales and routes video signals to each panel so the full image displays seamlessly, regardless of panel layout . At CMG Visuals, we use ColorLight and NovaStar video processors.

LED walls are modular. Individual modules can be replaced easily due to manufacturing tolerances; it’s common to include spare modules upon installation. Sometimes power supplies, HUB cards and receiving cards need replacement. All orders come with spare parts to ensure 24/7 uptime and are backed by a 5 year parts warranty.

Typical lifespan is 50,000–100,000 hours to half-brightness—far outlasting projector bulbs and saving on maintenance.

No—LEDs emit their own light, so they remain bright and vibrant even in well-lit environments—unlike projectors.

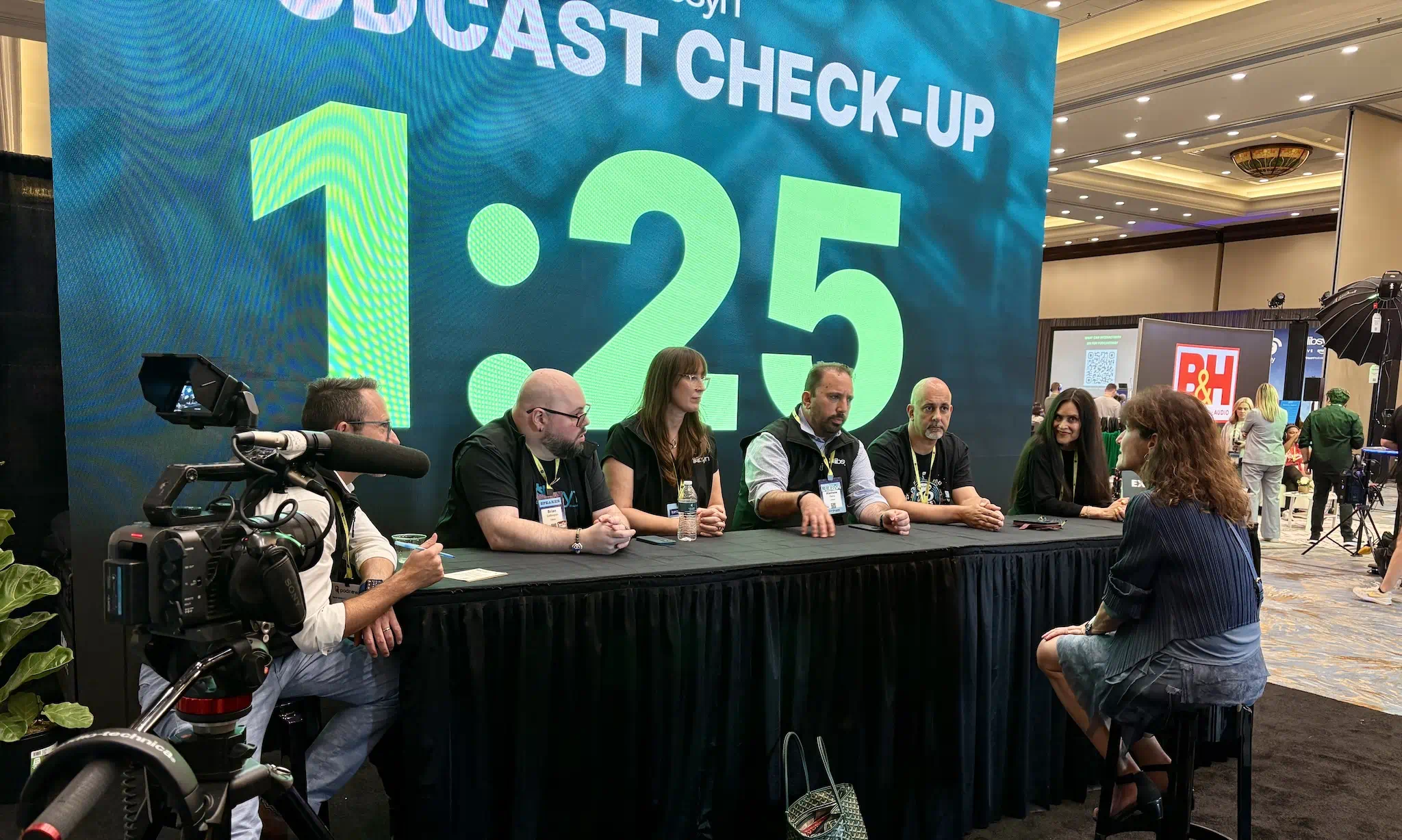

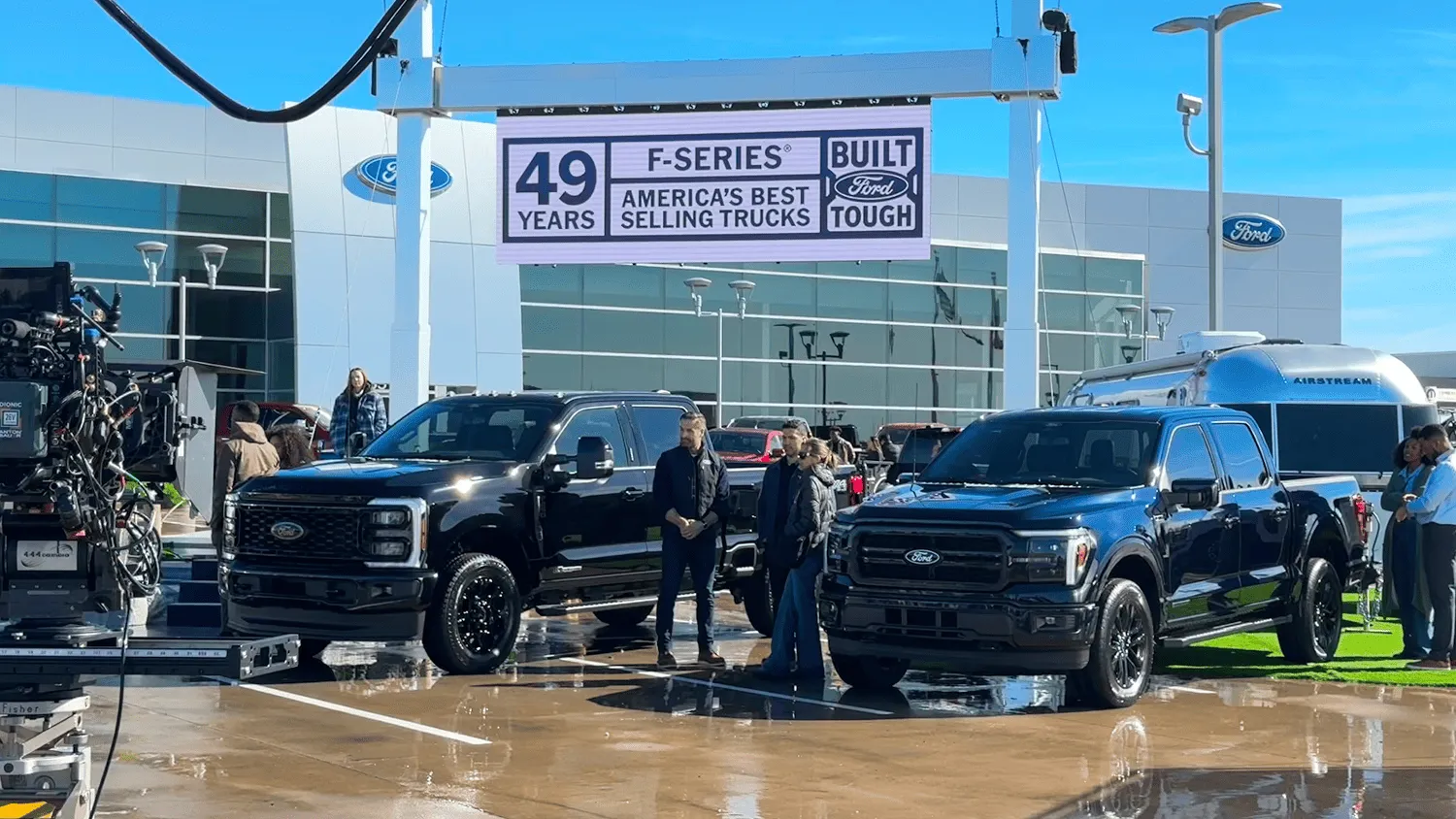

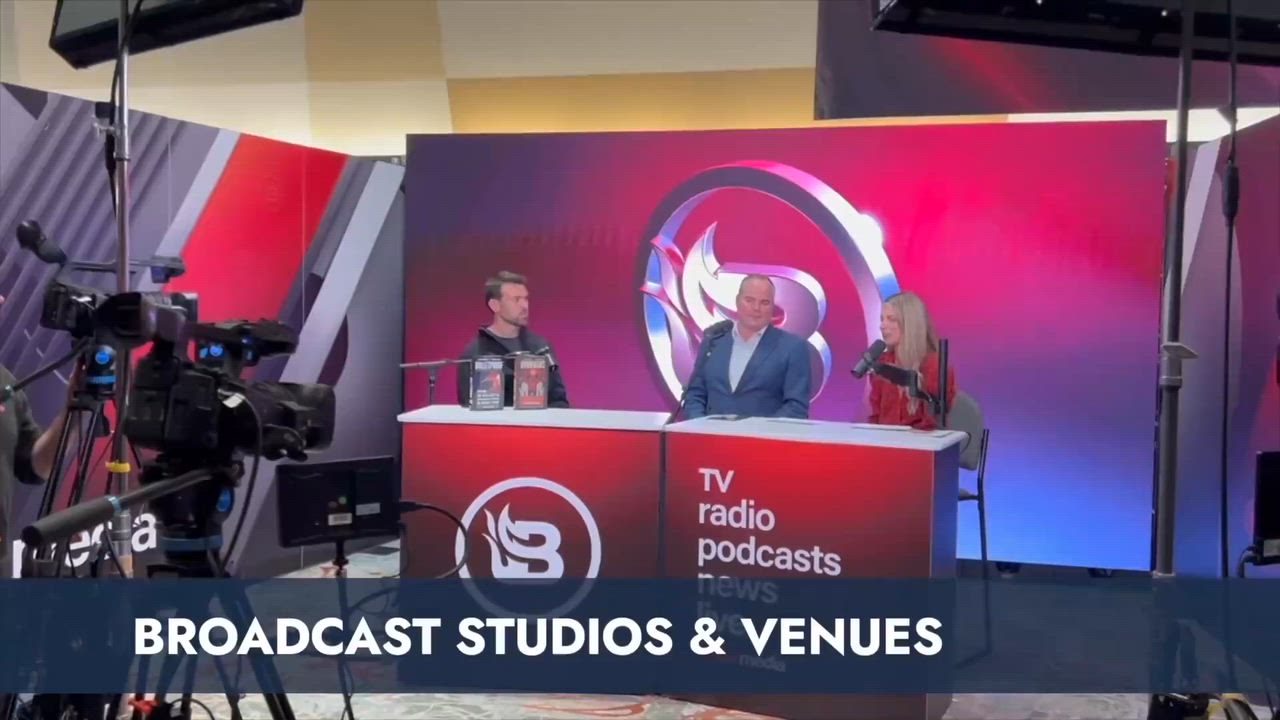

For broadcast or on-camera use, high refresh rates (≥3800 - 7680Hz) prevent flicker and camera artifacts. Additionally depending on scan rate we can custom add on a lower rate such as 1/24, 1/16, and 1/8.

Yes, our LED systems are designed for continuous, around‑the‑clock operation.

Standard inputs include DisplayPort, SDI, HDMI, media players, PCs/Macs, and signage networks—most systems handle up to 4K video .

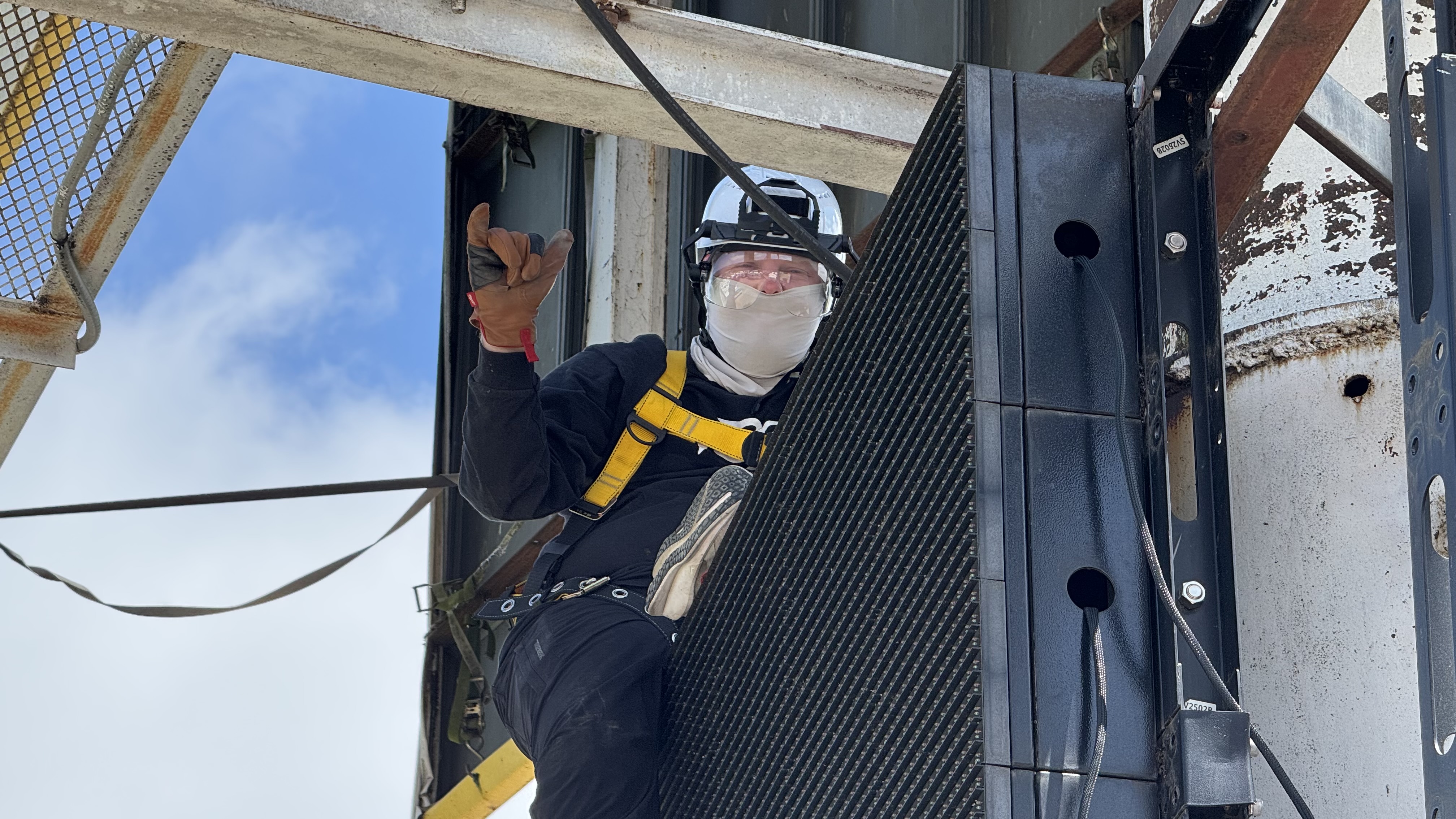

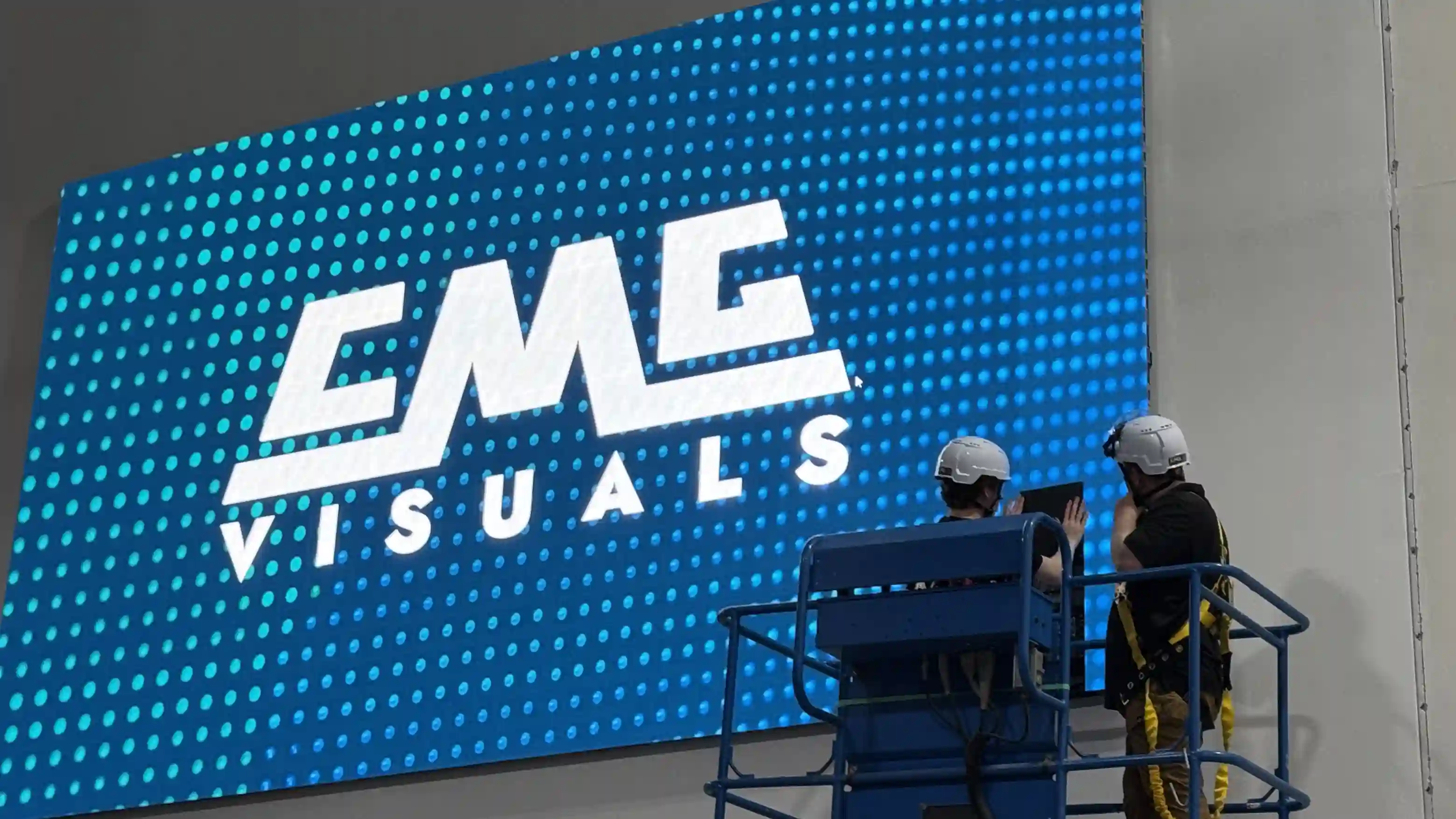

Professional installation is recommended—especially for large or curved walls—to ensure structural mounting, cabling, calibration, and alignment.

At CMG Visuals, all of our screens come with a limited 5 year hardware and support warranty. Extended warranty's can be purchased.

Indoor brightness usually ranges from 800 to 1.000+ nits; outdoor walls can handle much higher brightness to remain vibrant in daylight 5,000 - 10,000.

Absolutely—most LED walls use modular panels that allow changing shape or scale. Designers can help with redesigns and re-calibration as needed.
