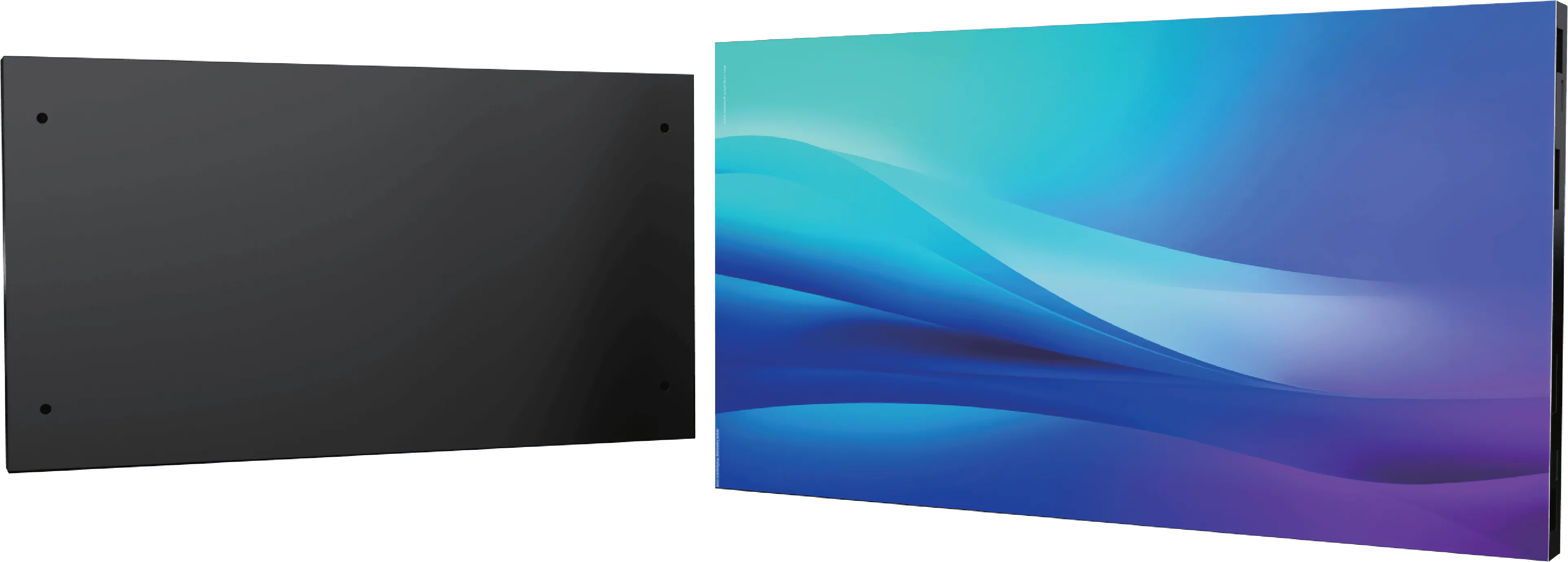

1609 Mega Series COB LED panel displaying blue and purple artwork, shown beside the dark rear cabinet chassis

1609/54" Mega Series

Large size Full Flip Chip COB display
Full available pixel pitch 0.6/0.7/0.9/1.2/1.5/1.8.
97% DCI-P3 color gamut optional.
HDR function options for HDR10&HLG.
3000nits high brightness options for semi outdoor application.

Product Size

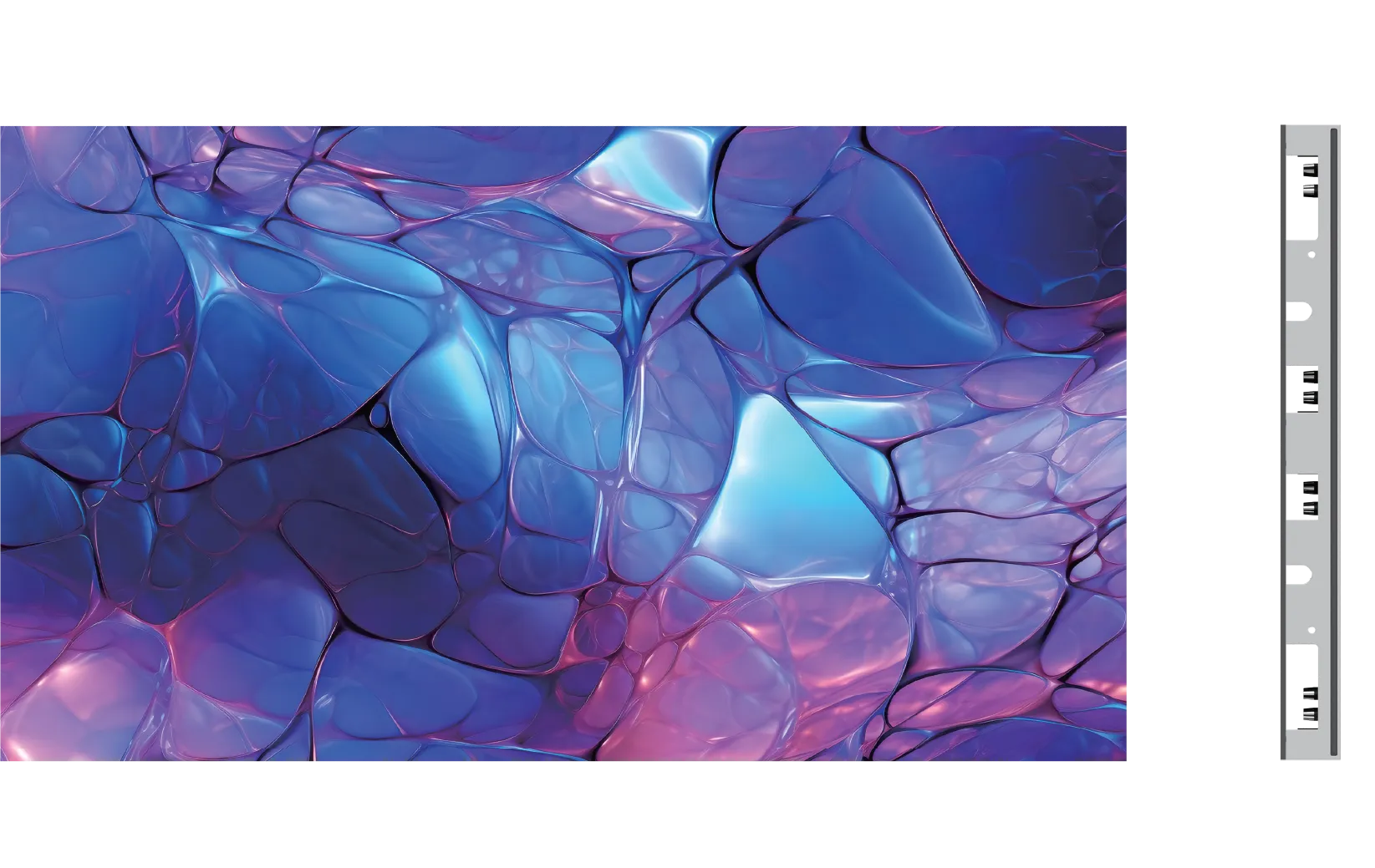

Dimensioned drawing of a 1609 Mega Series cabinet measuring 600mm wide, 337.5mm high and 28mm deep

Wider View Angle

Flip chip COB makes wider view angel 170°/170°.

Curved LED wall showing an autumn lakeside scene, illustrating the 170 degree viewing angle

Configured with the Most Advanced Drive IC (Optional)

Common cathode PWM constant current driver IC, energy saving.
Large channel, integrated column and vertical control IC, lessIC, less heat dissipation.
High gray level 16bit, work with control system can be 22bit+ color processing depth.

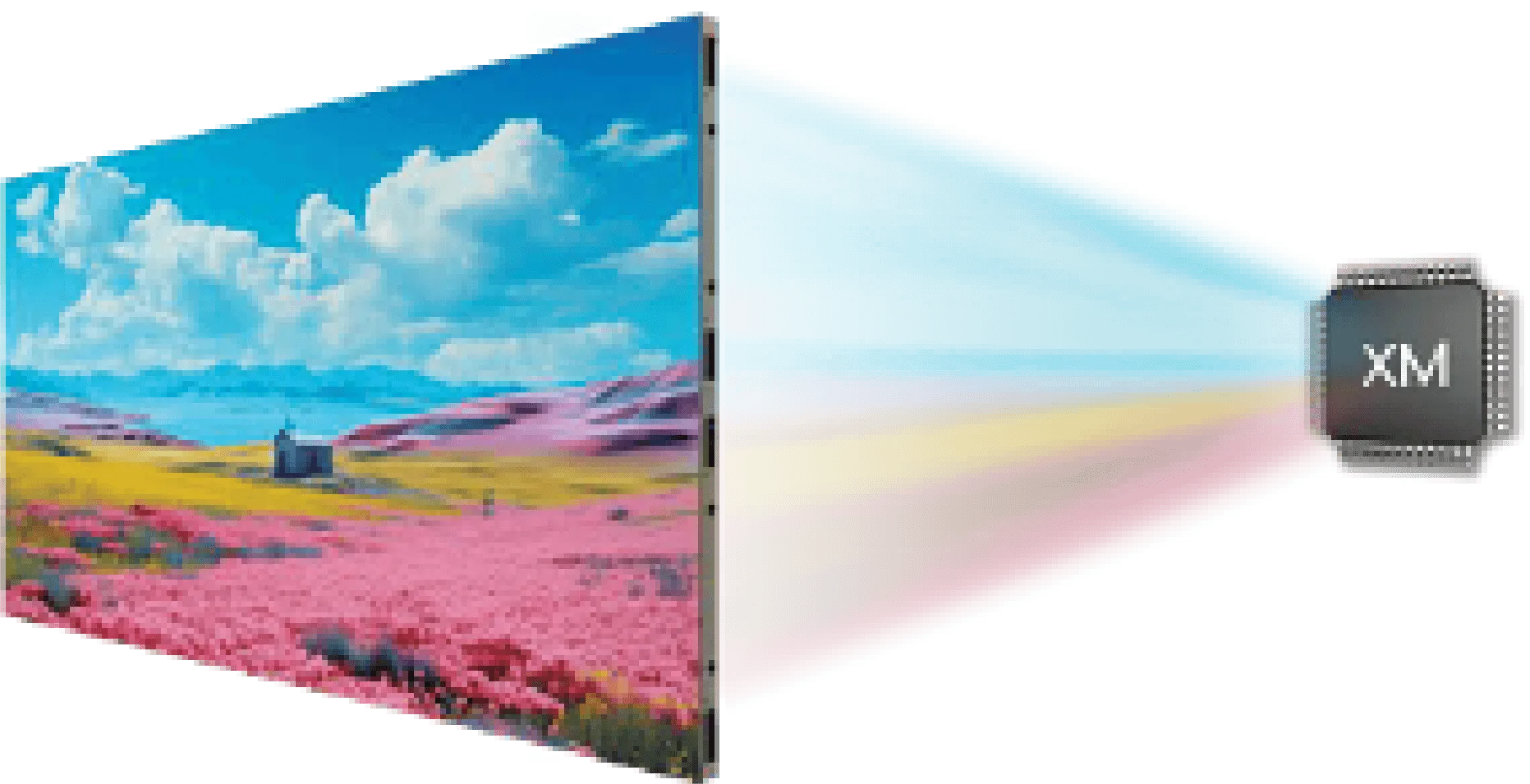

LED wall displaying a field of pink flowers beside a driver IC diagram illustrating color processing depth
Row of green trees rendered on a full flip-chip common-cathode COB panel

Full Flip Chip Common Cathode Cob Panel

Full flip chip, no welding pad block, high luminous eiciency, andwider view angle
No welding wire, reduce the failure rate of the lamp bead.
Common cathode design, reduce power consumption, green and environmental protection.
1200*675*28mm large size panel design, less splicing gap, better flatnees and reduce installation time.
Super slim cabinet with thickness only 28mm, create an ultra-thin display experience.
Full Flip Chip common cathode design, reduce power consumption, promote environmental protection.

Multiple cabinet size options

Side profile of a 1609 Mega Series cabinet showing its 28mm depth
28mm

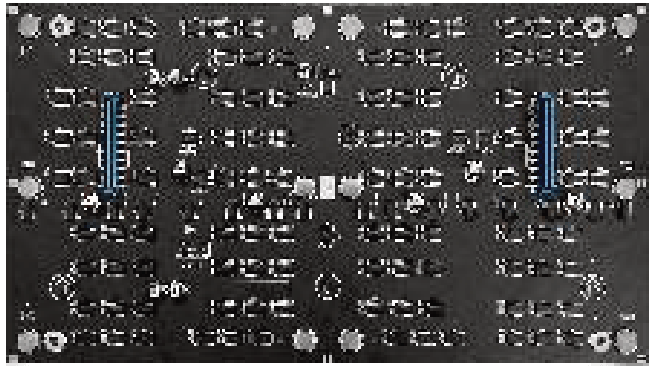

Rear circuitry of a 300 × 168.75mm 1609 Mega Series LED module
300x168.75mm
Front of a 600 × 337.5mm 1609 Mega Series cabinet
600x337.5mm
Front of a 1200 × 675mm 1609 Mega Series cabinet
1200x675mm

Larg size cabinet design

One 1200 × 675mm cabinet covering an area with no internal splicing seams
1200*675mm*1
Four 600 × 337.5mm cabinets tiled to cover the same area, showing three splicing seams
600*337.5mm*4
Large-size cabinet design
Reduce installation time
Reduce splicing gaps
Save labor cost

Cob Package Protection

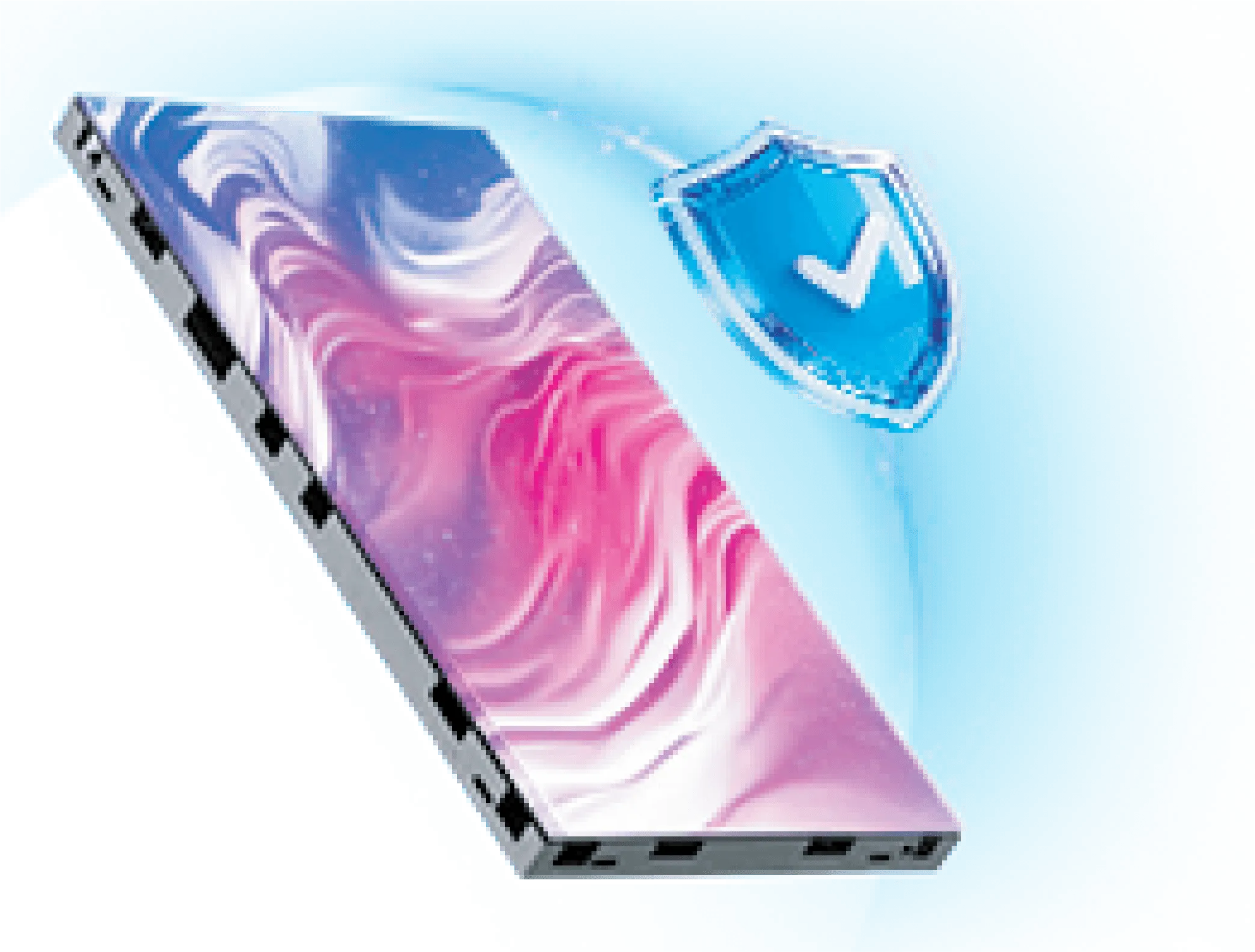

1609 Mega Series panel with a protective shield icon representing COB surface durability
Anti-collision
Anti-oxidation
Moisture-resistant
Easy clean
Anti-static

Light Weight Design

light weight design,save your laborcost during installation.

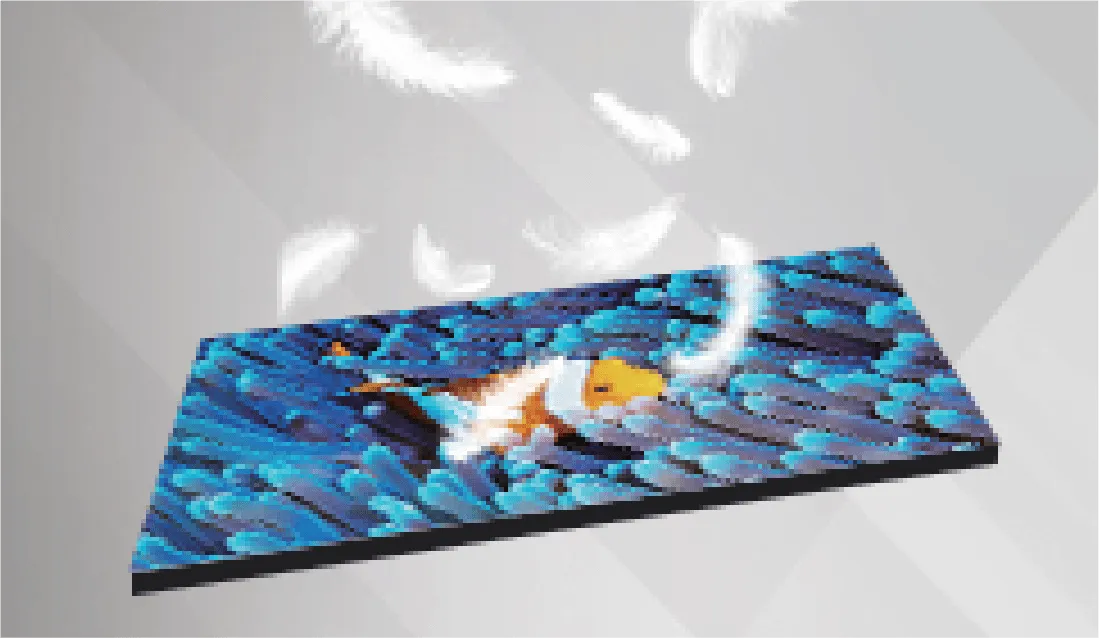

Slim 1609 Mega Series cabinet held at an angle beside falling feathers, showing its low weight

Universal Bracket With Lcd

Cabinet install can directly use the 54"LCD bracket ,no need new structure,reduce cost.

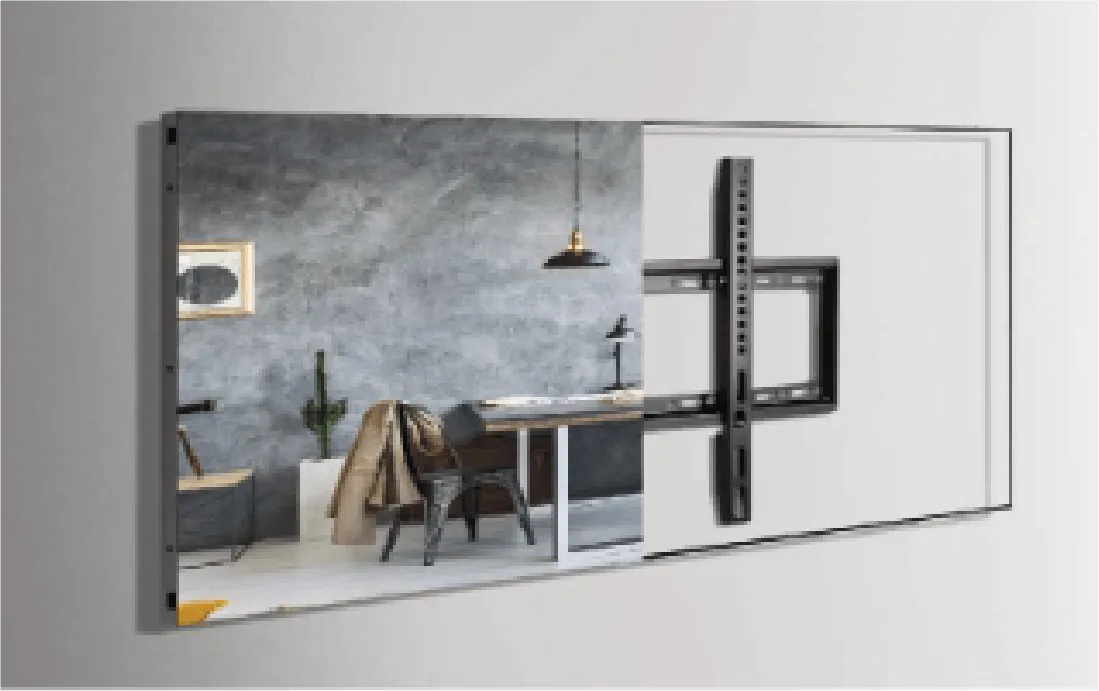

1609 Mega Series cabinet mounted on a standard 54-inch LCD wall bracket in an office interior

Specifications

CategoriesModel1609-061609-071609-091609-121609-151609-181609-06M1609-07M1609-09M1609-12M1609-15M1609-18M
Physical parametersPixel Pitch (mm)0.6250.781250.93751.251.56251.8750.6250.781250.93751.251.56251.875
Pixel ConfigurationCOB
Pixel Density (dots/m²)2,560,0001,638,4001,137,778640,000409,600284,4442,560,0001,638,4001,137,778640,000409,600284,444
Cabinet Size (W×H×D)600×337.5×28mm1200×675×28mm
Cabinet Resolution (W×H)960×540768×432640×360480×270384×216320×1801920×10801536×8641280×720960×540768×432640×360
Cabinet MaterialDie-cast aluminum
Module Size (W×H)150×168.75mm300×168.75mm150×168.75mm300×168.75mm
Weight4.8 kg/cabinet; 23.7 kg/m²18.6 kg/cabinet; 23 kg/m²
Optical parametersViewing Angle170° (V) 170° (H)
Surface TreatmentBlack matte
Brightness (cd/m²)800–1,000
Brightness Uniformity≥98%
Contrast15,000 : 1
Refresh Rate3,840–7,680Hz
Gray Scale14–16 bit
Color CalibrationPixel to pixel
Color Temperature2,000–10,000K
Color Gamut≥97% DCI-P3 optional
HDRHLG / HDR I / HDR 10+
Electrical parametersA.C. Inputs100–240V
Frame50 / 60Hz
Power Consumption (max.)300–450 W/m²
Power Consumption (avg.)100–150 W/m²
RedundancyOptional (receiving card)
ApplicationServiceabilityFront
Operation Temperature−10°C to 40°C
Operation Humidity10%–90%RH
Ingress ProtectionIP54 front / IP20 rear
Exterior / InteriorInterior
Lifespan100,000 hours
OthersCertificatesCE, FCC, CB, ETL
PackingWooden box
