Indoor fine-pitch led
solution

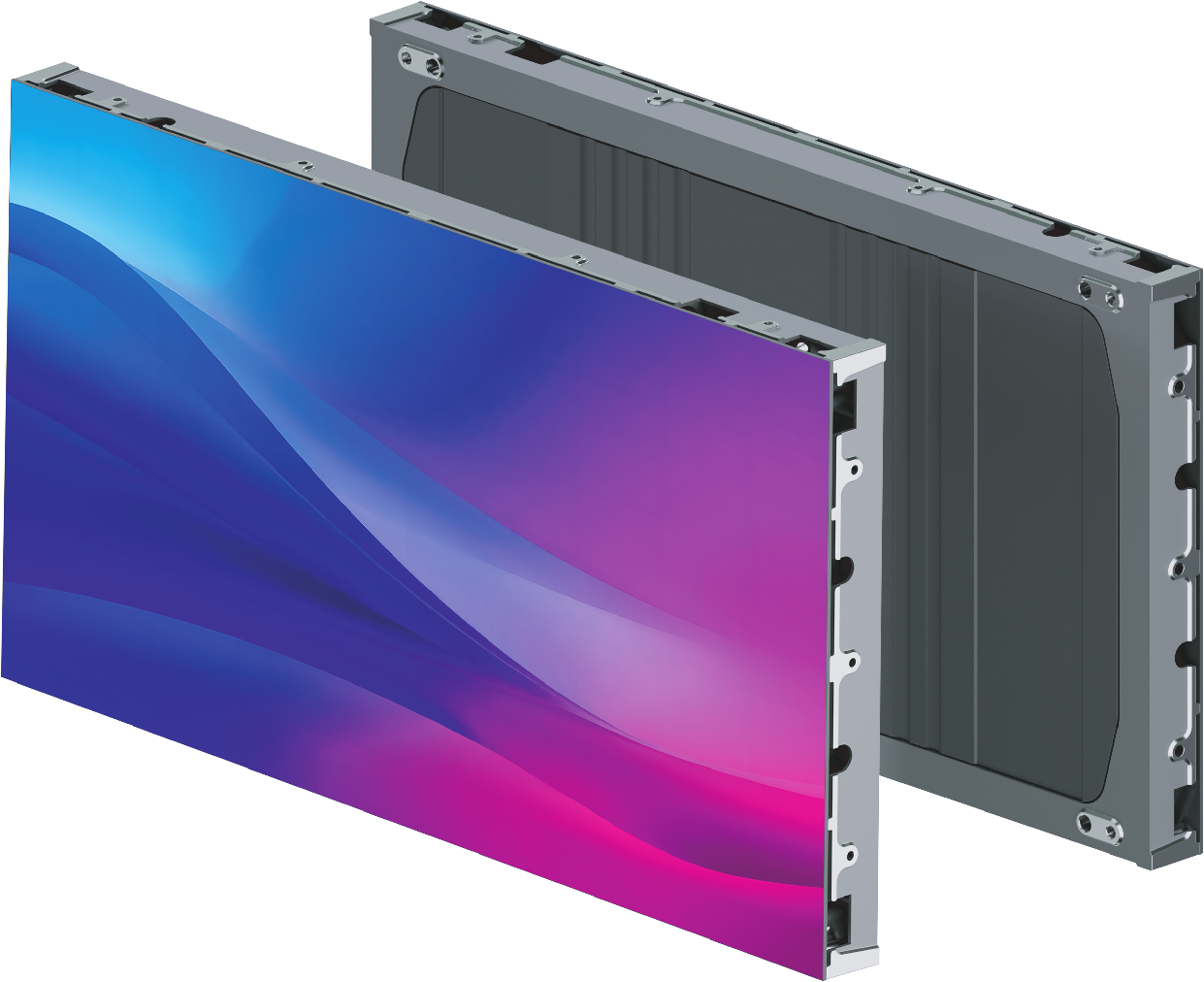

1609E Mega Series LED cabinet displaying blue and magenta artwork, shown beside the grey rear chassis

1609E/54"Mega Series

Cost-Effective, Flexible Size Options

Diverse Pixel Spacing Options

Convenient Screen Upgrade with Module Replacement Only Available in 0.93,1.25,1.56,1.87,2.5 mm pixel pitch.

Redundancy options

Signal and power redundancy options for better stability.

COB Full Flip Chip package

All COB pixel pitch full Flip chip package makes wider view angle and good heat dissipation.

Multiple cabinet size options

Side profile of a 1609E Mega Series cabinet showing its 40mm depth
40mm

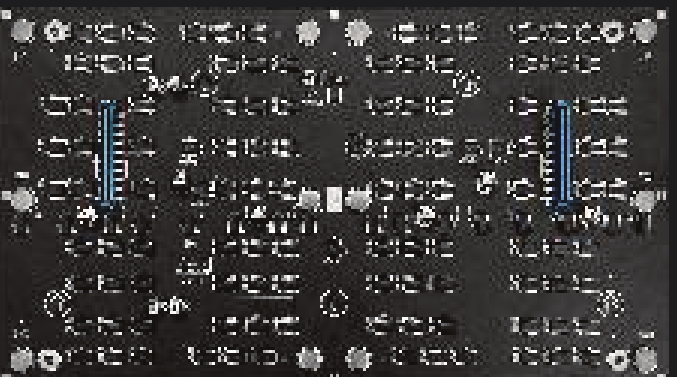

Rear circuitry of a 300 × 168.75mm 1609E Mega Series LED module
300x168.75mm

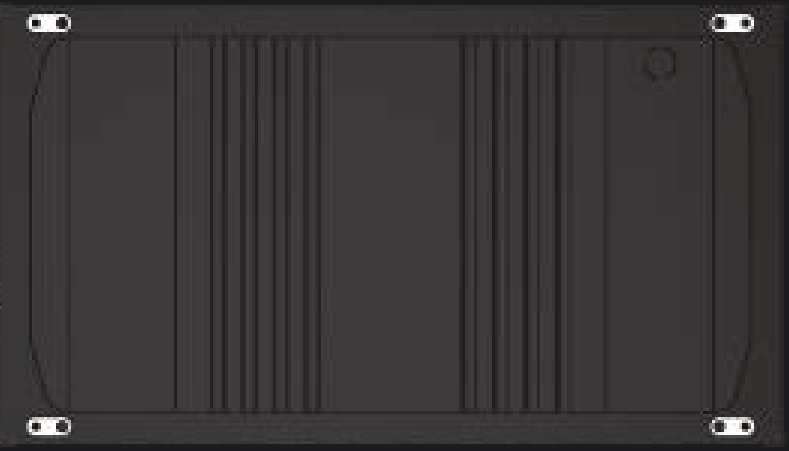

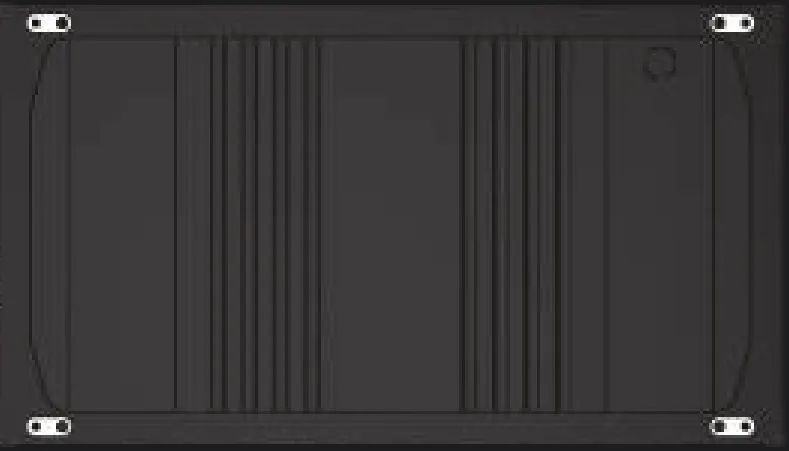

Rear of a 600 × 337.5mm 1609E Mega Series cabinet
600x337.5mm

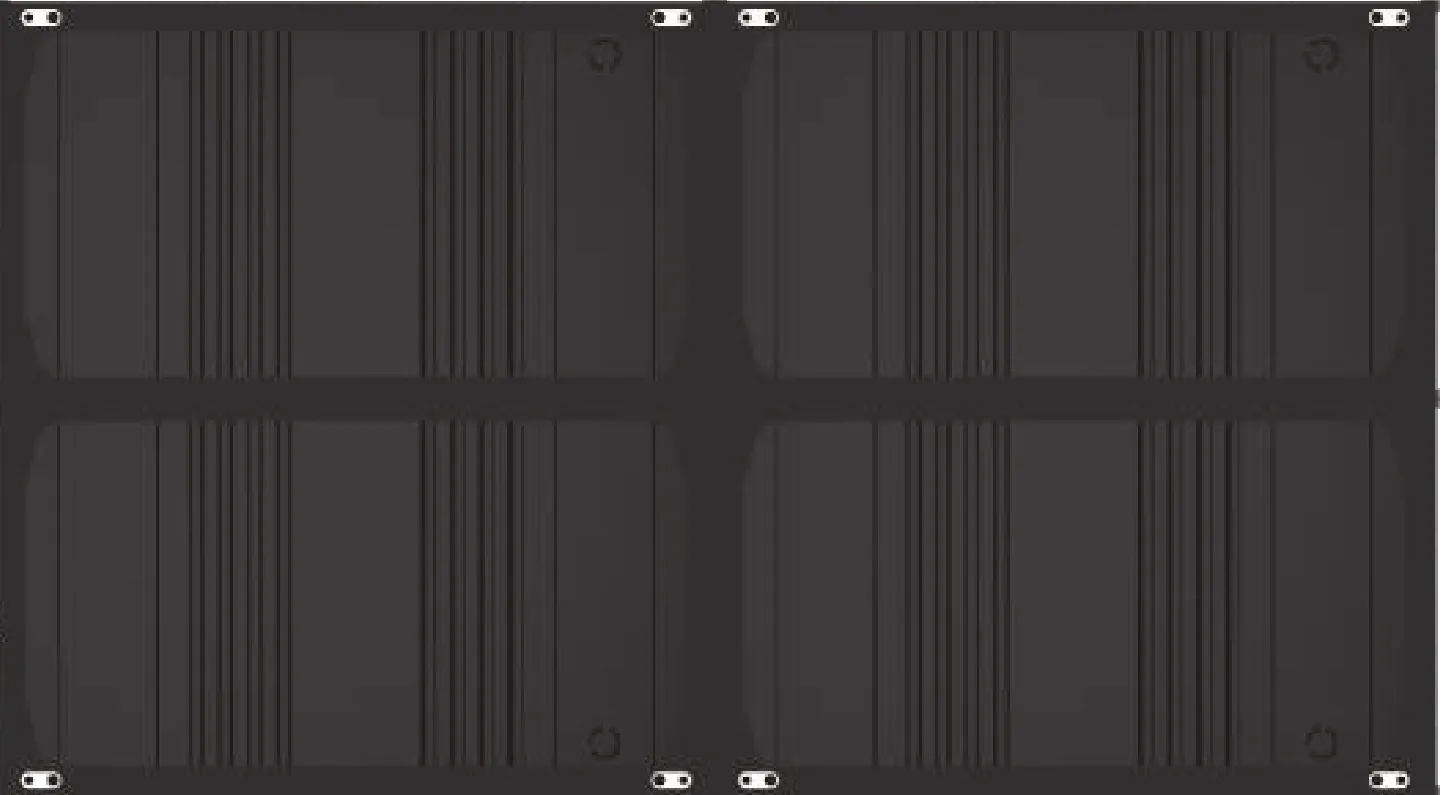

Rear of a 1200 × 675mm 1609E Mega Series cabinet
1200x675mm

Installation of large and small cabinet splicing

Flexible splicing of large and small size cabinet, maximize meet the installation size requirement.

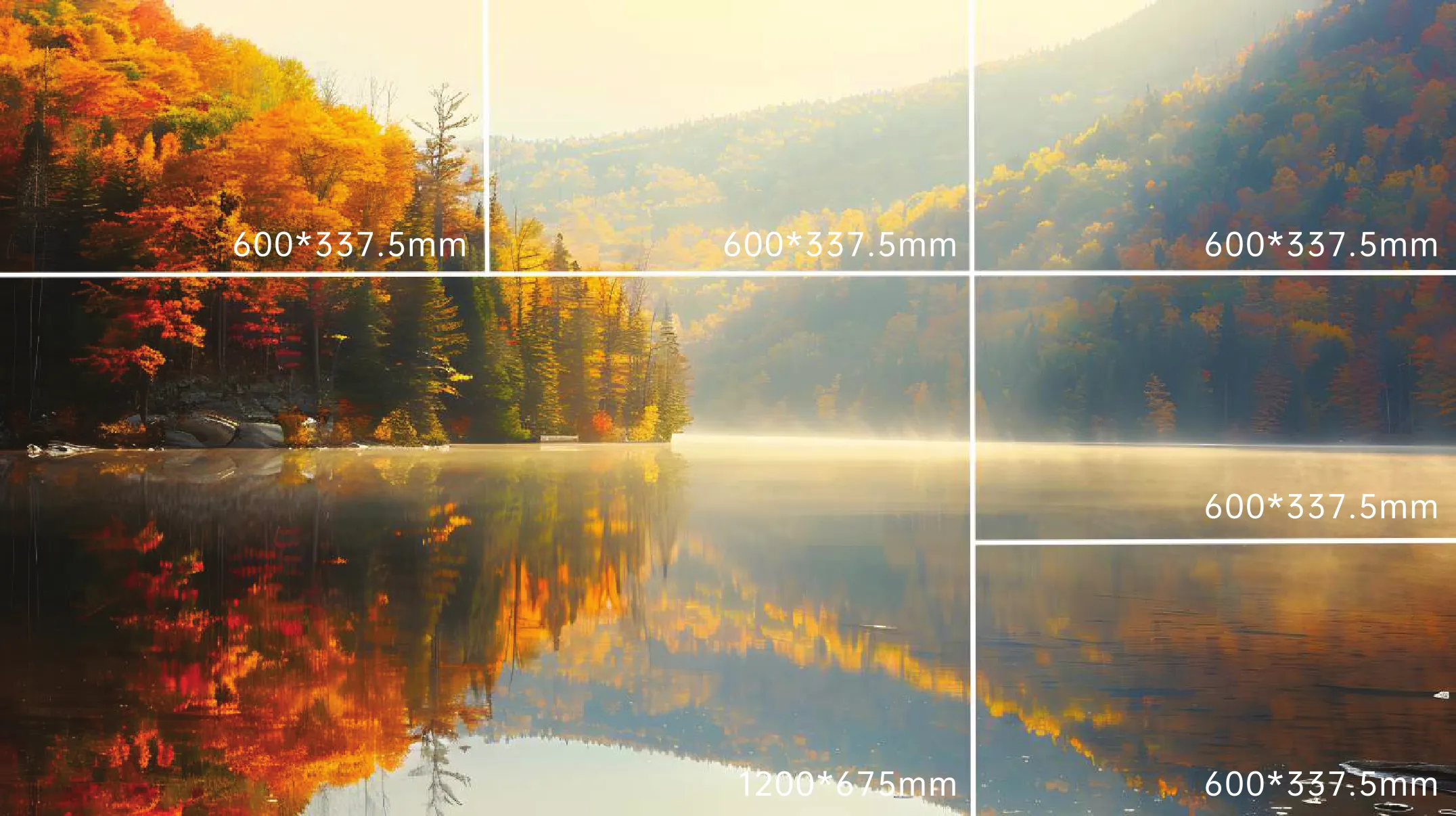

Autumn lakeside image on an LED wall overlaid with a diagram showing 1200 × 675mm and 600 × 337.5mm cabinets spliced together

High contrast ratio

10000:1 high contrast ratio makes your video wall bright and vivid

Coastal rock formation on a competitor LED panel, with washed-out shadows and flat sky tones
Others
The same coastal rock formation on a CMG Visuals 1609E panel, with deeper blacks and richer sky tones
CMG Visuals

Low brightness but high gray level

Even in low brightness levels, details are clear

Night cityscape with a lunar eclipse on a competitor LED panel, with shadow detail lost to crushed blacks
Others
The same night cityscape with a lunar eclipse on a CMG Visuals 1609E panel, with shadow detail preserved at low brightness
CMG Visuals

Comprehensive High-Protection Features

Moisture, Dust, Static, and Collision Resistant with COB

Integrated Wireless Design Advantages

Safety assurance and swift maintenance

Lightweight Panel Design

Rear cover made with plastic reduce cabinet weight

Large size cabinet design

One 1200 × 675 × 40mm cabinet covering an area with no internal splicing seams
1200*675*40mm*1

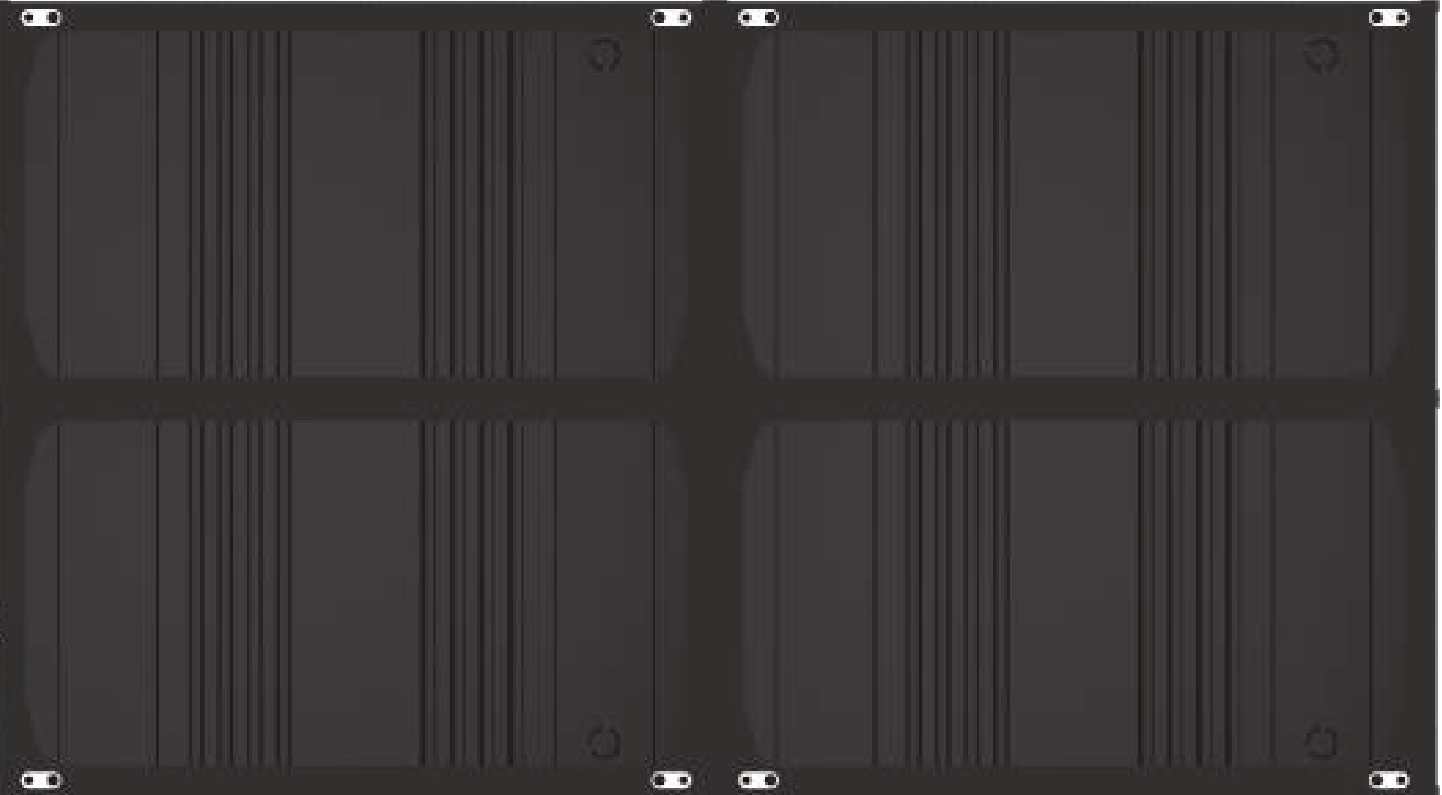

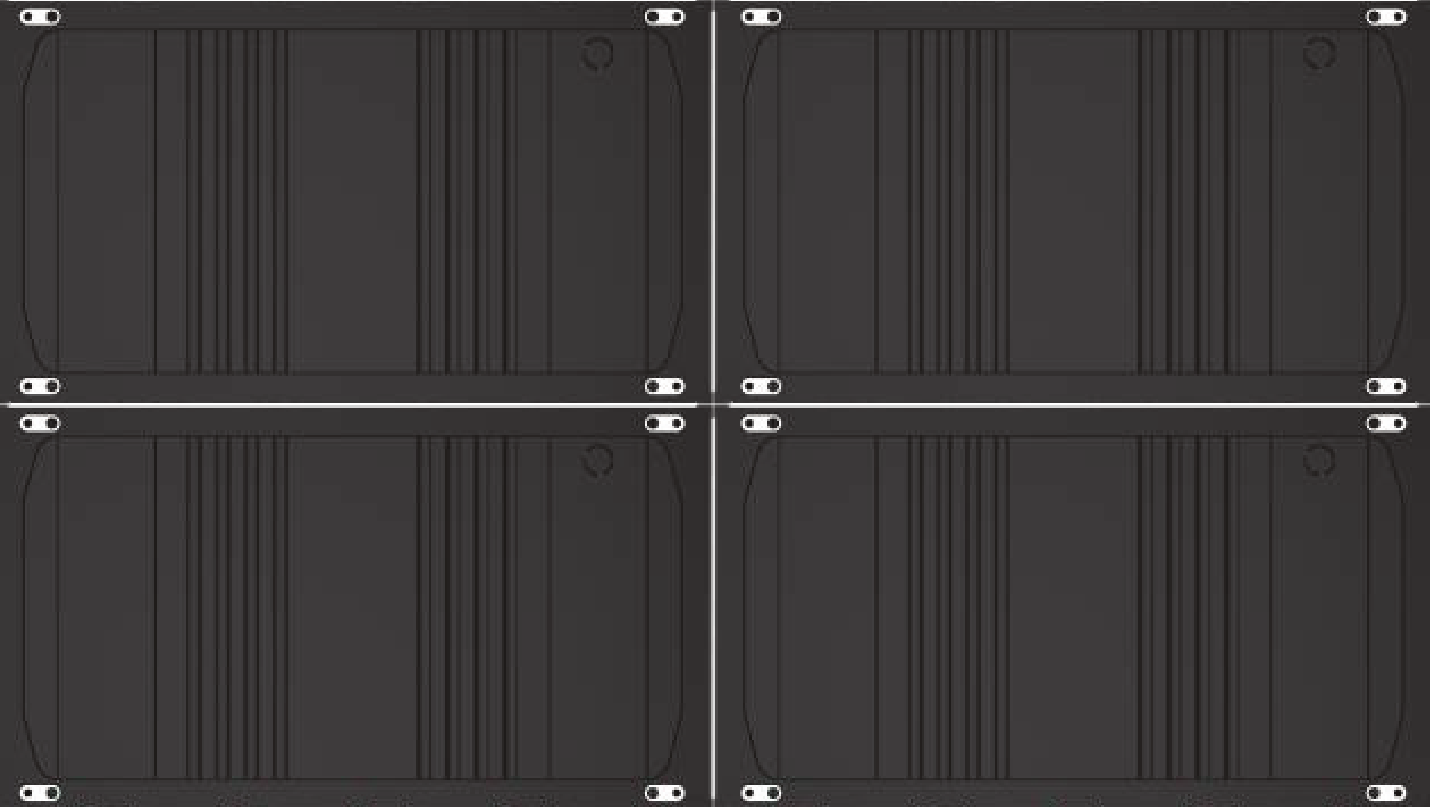

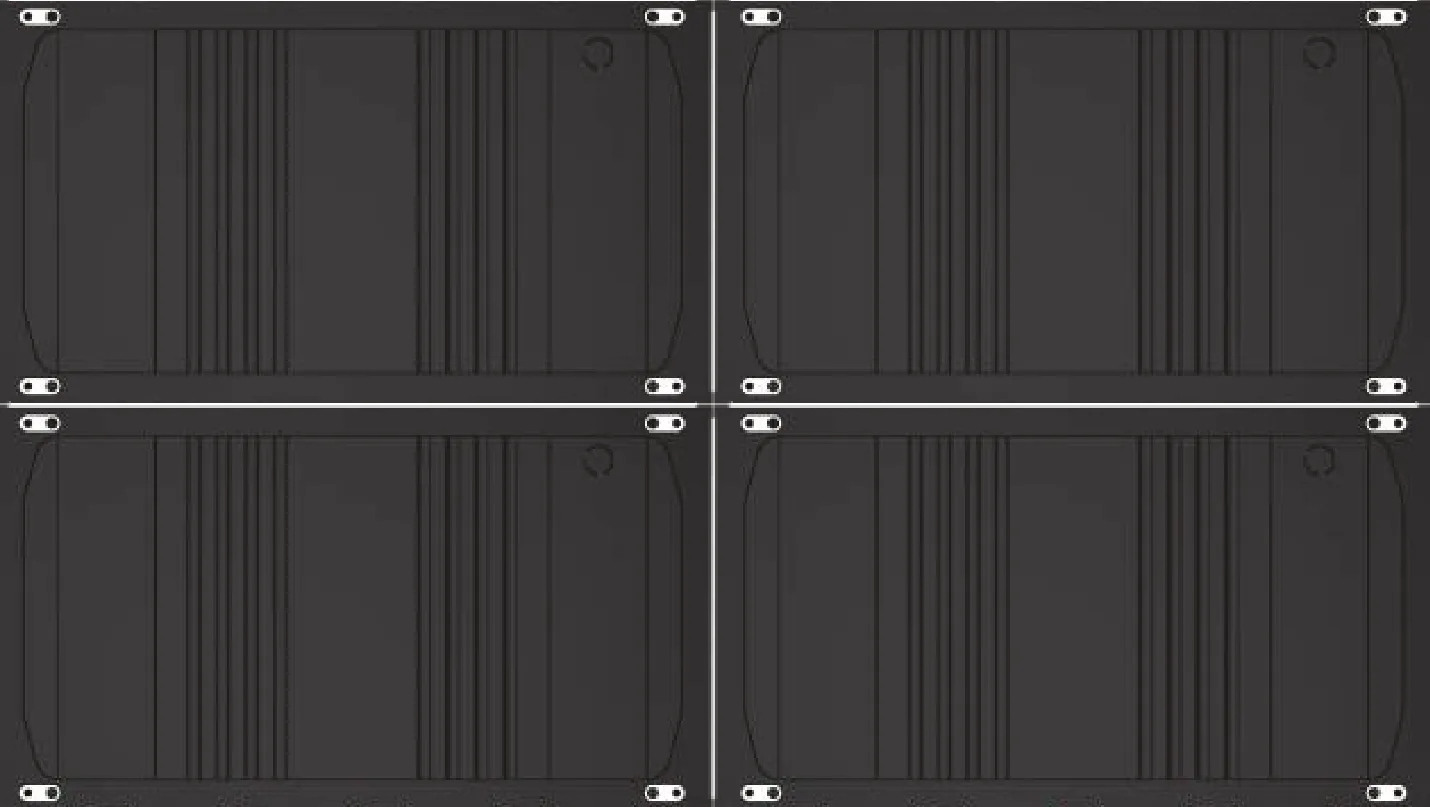

Four 600 × 337.5 × 40mm cabinets tiled to cover the same area, showing the splicing seams
600*337.5*40mm*4
Large-size cabinet design
Reduce splicing gaps
Reduce installation time
Save labor cost

Super Protection

Light Weight design
Cost Savings

1609E Mega Series cabinet balanced on a seesaw against eggs, illustrating its low weight

Redundancy design

Dual receiving card and power supply options, provides 4 times safety video wall never black out.

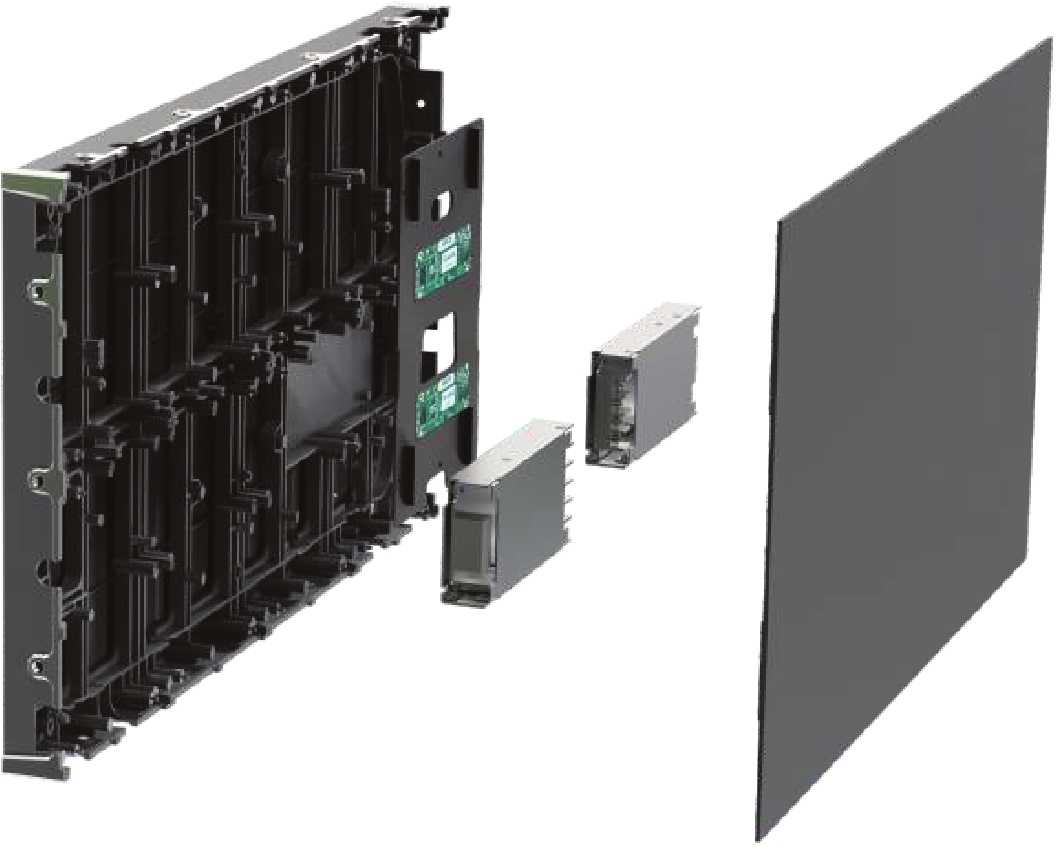

Rear of a 1609E Mega Series cabinet with its dual receiving card and power supply exposed

Super protection

1609E Mega Series panel with a protective shield graphic representing COB surface durability
Anti-collision
Anti-static
Moisture-resistant
Anti-oxidation
Easy clean

Specifications

CategoriesModel1609E-091609E-121609E-151609E-181609E-09M1609E-12M1609E-15M1609E-18M
Physical ParametersPixel Pitch (mm)0.93751.251.56251.8750.93751.251.56251.875
Pixel ConfigurationFlip Chip COB
Pixel Density (dots/m²)1,137,778640,000409,600284,4441,137,778640,000409,600284,444
Cabinet Size (W×H×D)600 × 337.5 × 40mm1200 × 675 × 40mm
Cabinet Resolution (W×H)640×360480×270384×216320×1801280×720960×540768×432640×360
Cabinet MaterialDie-cast aluminum
Module Size (W×H)300 × 168.75 mm
Weight3.9kg15.6kg
Optical ParametersViewing Angle170° / 170°
Brightness (cd/m²)600
Brightness Uniformity≥ 98%
Contrast10,000 : 1
Refresh Rate3840
Gray Scale14 bit
Color CalibrationPixel to Pixel
Color Temperature2000–10000K
Electrical ParametersA.C. Inputs100~240 V
Frame50/60 hz
Power Consumption (Max.)400 W/m²350 W/m²350 W/m²350 W/m²400 W/m²350 W/m²350 W/m²350 W/m²
Power Consumption (Avg.)133 W/m²120 W/m²120 W/m²120 W/m²133 W/m²120 W/m²120 W/m²120 W/m²
RedundancyOptional
ApplicationServiceabilityFront
Operation Temperature−10°C ~ 40°C
Operation Humidity10% ~ 90%RH
Ingress ProtectionIP40 front / IP20 rear
Exterior / InteriorInterior
Lifespan100,000 hrs
OthersCertificatesCE, FCC, CB, ETL
PackingWooden box
