Indoor fine-pitch led
solution

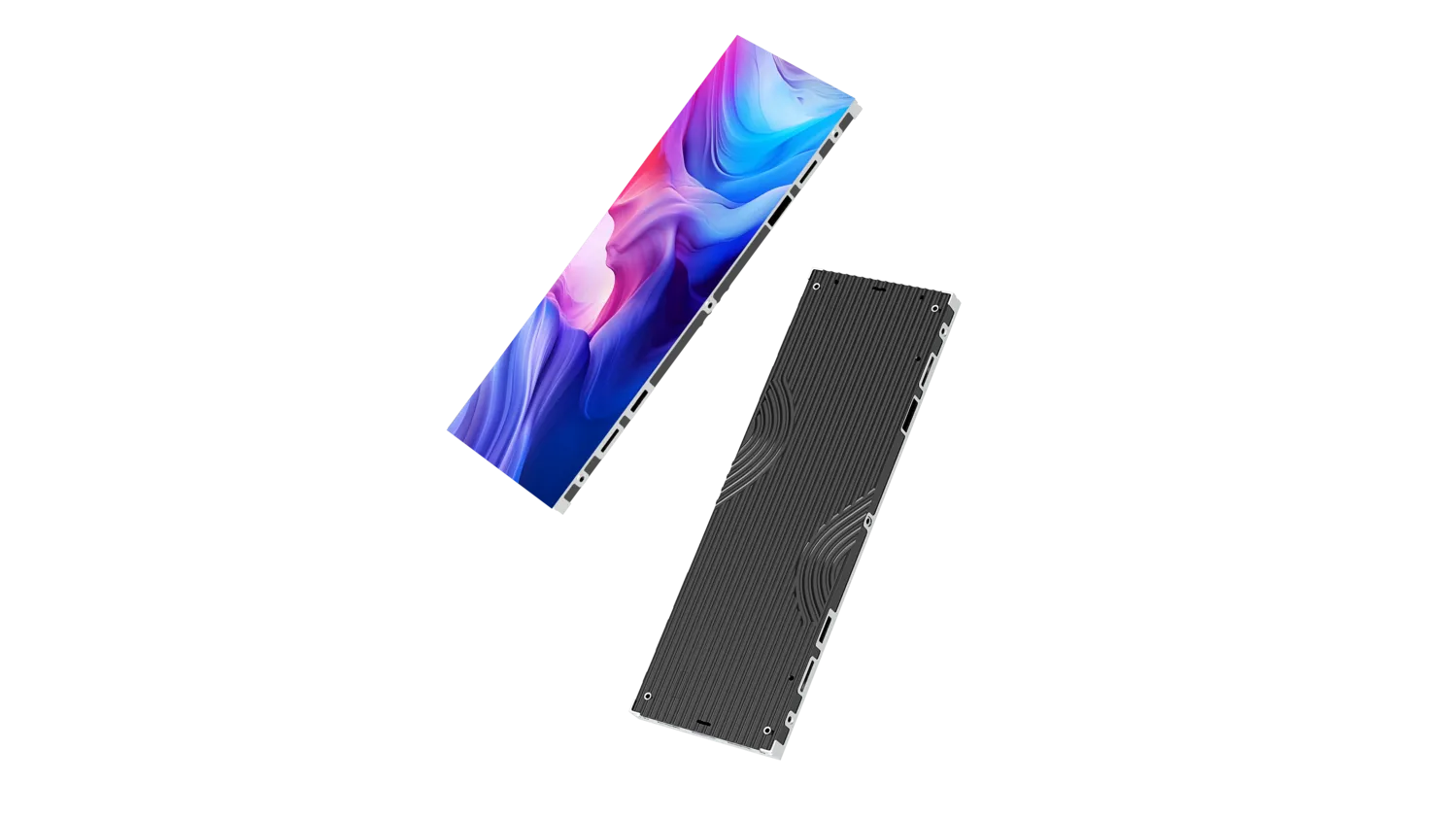

Series indoor fine-pitch LED panels showing the display face and the rear cabinet chassis

101/201 series

Vivid precision, multi-dimensional display

Supports Intelligent Calibration and Brompton System

Equipped with intelligent calibration for automatic brightness, color, and geometry adjustments to enhance image consistency. Integrated with Brompton image processing, supporting high-resolution input and seamless multi-screen splicing to ensure stable and professional display performance.

Intelligent Calibration
Brompton System

COB Module Compatible

COB Technology

The 101/201 Series supports both SMD modules and Fabulux's high-standard COB modules, ensuring compatibility with mainstream technologies and applications while significantly enhancing system flexibility and functionality.

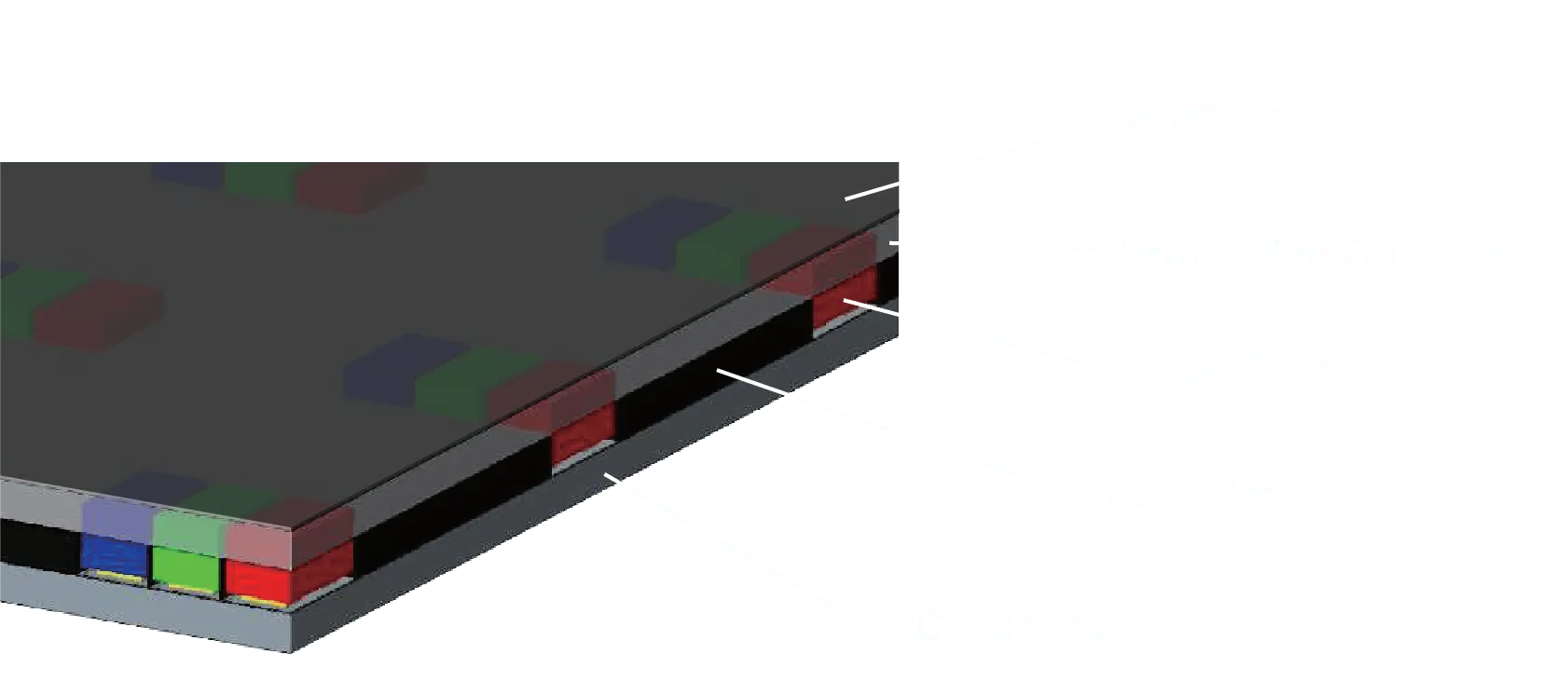

Cutaway diagram of a COB LED module showing surface film, protective coating, LED chip, base film and PCB board

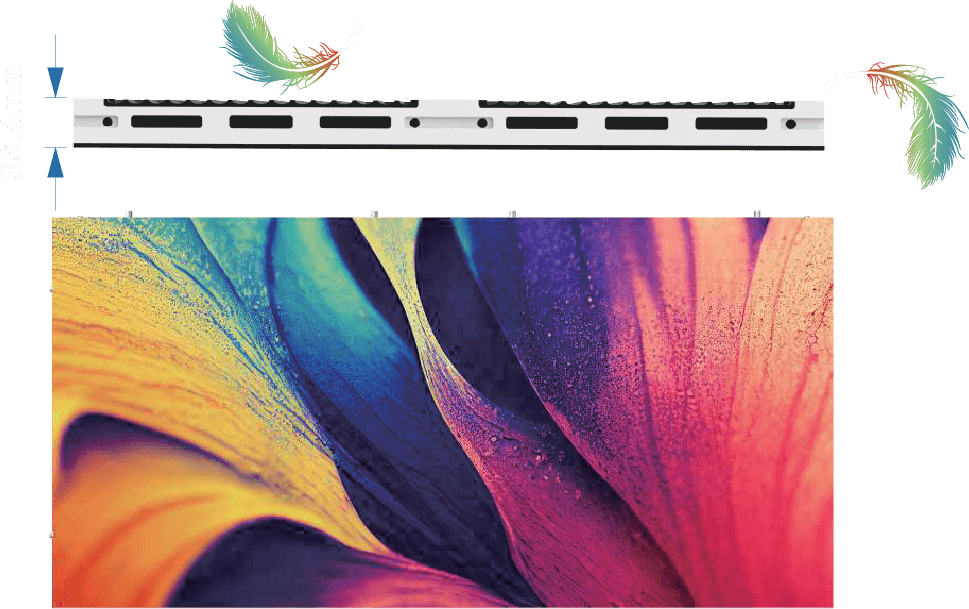

Side profile of a 101/201 Series cabinet measuring 33.4 mm thick, shown beside a feather

Lightweight & High-Strength

Just 17.4 kg/m² and 33.4 mm thin - 15% lighter, easy to transport and install, with tested durability.

17.4KG/m²
Weight
33.4mm
Thinness
15%
Lighter

Rich Size Options

Multiple cabinet sizes plus sector cabinets to fit any scenario.

Rear view of a 500 × 250 mm 101/201 Series LED cabinet
500*250mm

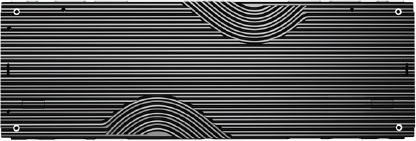

Rear view of a 750 × 250 mm 101/201 Series LED cabinet
750*250mm

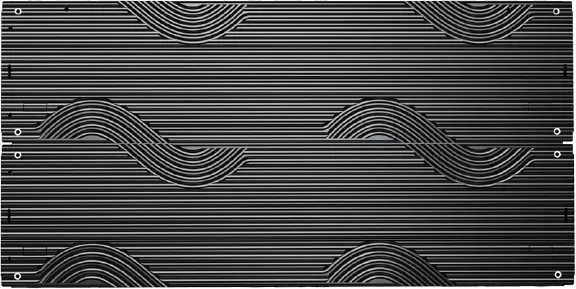

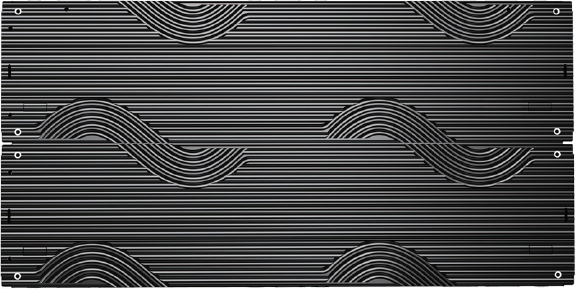

Rear view of a 1000 × 500 mm 101/201 Series LED cabinet
1000*250mm

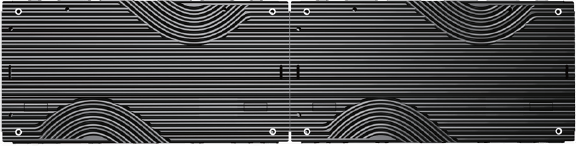

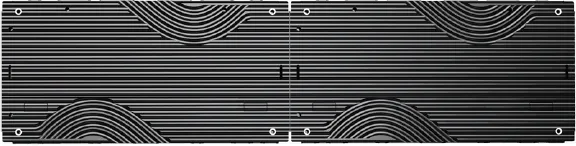

Rear view of a 1000 × 250 mm 101/201 Series LED cabinet
1000*500mm

Flexible Splicing

90° right-angle, curved, cube, and irregular splicing; cabinets rotate 90° with no color shift.

101/201 Series splicing configurations: 90° right-angle, cube, curved and flexible-panel wave displays, plus 90° cabinet rotation between vertical and horizontal

Versatile Installation

Hanging, flush wall mount, floor-standing, and wall mount for diverse applications.

Hanging LED video wall installation displaying a coastal town
Hanging

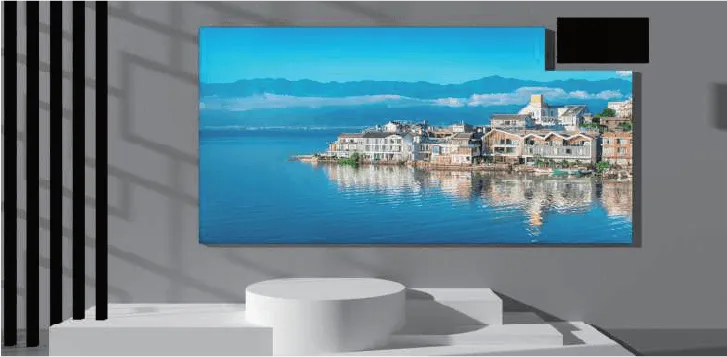

Flush wall-mounted LED video wall in a modern interior
Flush Wall Mount

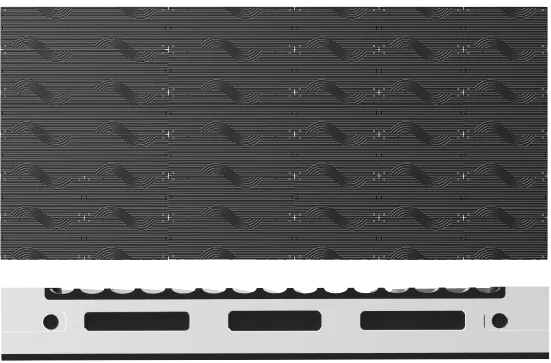

Dedicated wall-mount bar for installing 101/201 Series LED cabinets
Dedicated Wall Mount Bar

Specifications

Model Name P1.9 P2.6
Pixel Pitch (mm)1.952.6
Pixel Density (dot/m²)262,144147,456
LED Sealing TypeSMD1212SMD1515
Module Resolution (PX*PX)128*12896*96
Contrast Ratio8,000 : 18,000 : 1
Brightness (cd/m²)800–1,000800–1,000
Grey Scale (bit)≥14≥14
Refresh Rate (Hz)7,6807,680
Horizontal Viewing Angle (Deg)160°160°
Vertical Viewing Angle (Deg)160°160°
Max Power Consumption (W/m²)400–540±3%400–540±3%
Average Power Consumption (W/m²)120–180120–180
Module Size (mm * mm)250*250*2.6
Module Weight (kg)0.5
Cabinet Size (mm * mm)1,000*500/1,000*250/750*500/750*250/500*500/500*250/250*500/250*250
Weight (Kg/m²)17.4
Cabinet Thickness (mm)33.4
Input Voltage (V)AC100–240V
Working Temperature (°C)−20~+50°C
Working Humidity (RH)10%–90%RH
Maintenance TypeFront
Life Span>100,000 hours
Ingress ProtectionIP20
Working EnvironmentIndoor
CertificatesCE(EMC A, LVD), FCC, ETL, CB
