LED displays aren't simple screens. They're complex systems of modules, power supplies, receiving cards, and sending units all working in sync. When one piece falters, the whole picture suffers.
Over time, issues creep in: loose cables, power fluctuations, worn modules, or misconfigured settings. Most are fixable if you know where to look.
This guide walks through common problems, step-by-step fixes, when to repair versus replace, and when it's time to call a certified technician like the team at CMG Visuals.
TL;DR
- Common issues: blank screens, flickering, partial outages, color distortion
- Root causes: power, signal, or hardware faults in most cases
- Basic fixes: check power sources, inspect cables, verify control software settings
- Call a pro: NovaStar-certified tech for persistent faults or internal parts (e.g., driver ICs)
What Is an LED Display and How Does It Work?
An LED display is a modular system. The main building blocks are:
- LED panels (the visible modules)
- Power supplies
- Receiving cards
- A sending/control system that processes and renders video

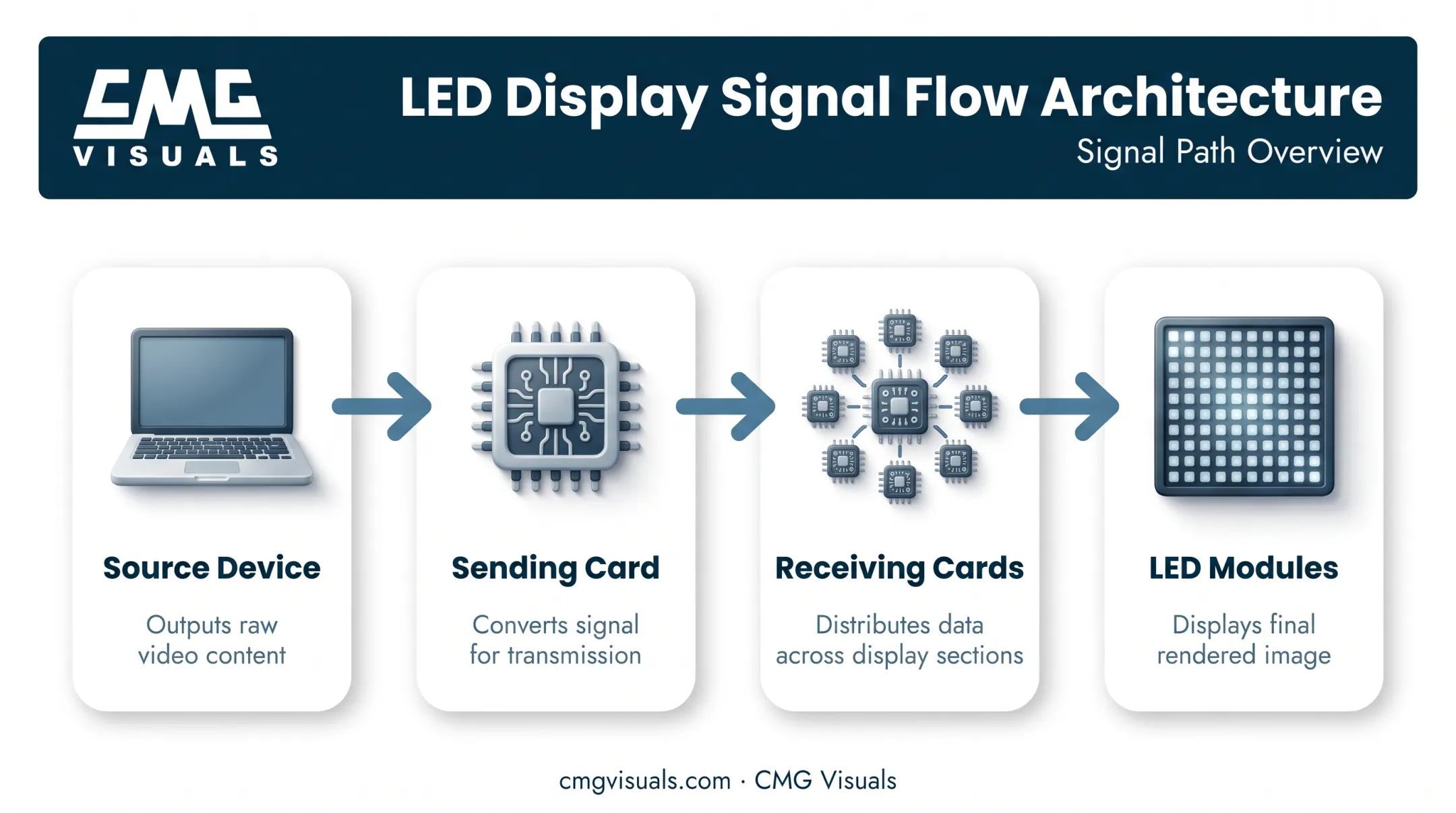

Signal flow is straightforward. Your source device (laptop, media player, or camera feed) sends data to a sending card. That card distributes synchronized data to receiving cards mounted across the display, and those cards drive the individual LED modules.
Colorlight's technical documentation notes that sending cards can keep dozens or hundreds of receiving cards in sync at once.
An LED wall is active electronics under constant load, not a set-and-forget screen. Modules, power, and control cards wear in, drift out of calibration, and fail in stages—which is why most "display not working" issues trace to one link in this chain.

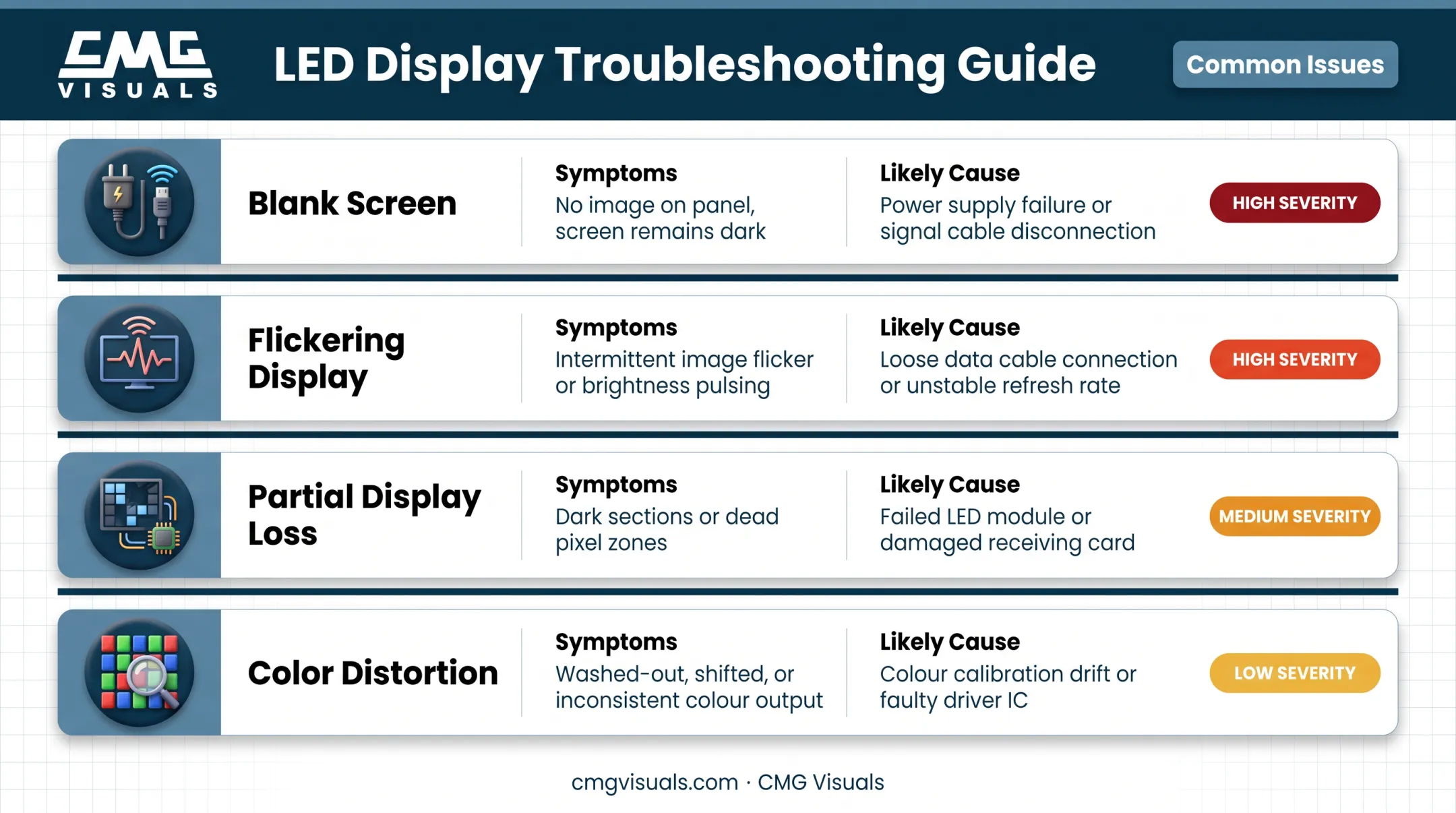

Common Problems With LED Displays
Most LED failures follow predictable patterns tied to power, signal, or hardware. Here's what to look for.
Problem 1: Completely Blank or Black Screen
Symptoms: No image, no power indicator lights, and no fan or power response from the unit.
Likely cause: Power supply failure, a tripped breaker, or no signal reaching the display from the source device.
Problem 2: Flickering or Flashing Display
Symptoms: Image blinks, shakes, or shows static/snow across parts of the screen.
Likely cause: Loose data cables, unstable power, a faulty sending/receiving card, or excess heat. AVIXA notes that unmanaged thermal buildup can cause flickering, ghosting, and even complete image loss.
Problem 3: Partial Display Loss or Dark Sections
Symptoms: One panel, module, or cabinet goes dark while the rest of the display works fine.
Likely cause: A faulty receiving card, hub board, or a physically damaged module.
CMG Visuals saw this at Methodist Hospital Dallas, where sections of a P1.5 wall went dark with power irregularities. Replacing hub cards, receiving cards, and damaged modules restored the wall without a full tear-out.
Problem 4: Color Distortion or Dead Pixels
Symptoms: Uneven colors, missing pixels, or discolored blocks scattered across the surface.
Likely cause: Damaged LED module, a failed driver IC, or mismatched firmware between components.
Why LED Displays Fail (Root Causes)
Failures don't happen randomly. They're tied to real operating conditions:
- Operational stress: Long run-hours and high brightness drive heat, which Samsung research flags as the biggest contributor to diode wear.
- Environmental exposure: Humidity, dust, and temperature swings hit outdoor and venue installs hardest.
- Improper installation: Configuration mismatches between components cause avoidable errors.
- Skipped maintenance: Outdated firmware and neglected cooling turn minor faults into major failures.
Ignore these long enough, and the consequences stack up fast:
- Reduced image quality during high-visibility events or broadcasts
- Complete display failure requiring costly emergency repair
- Safety risks from overheating or electrical faults
- Downtime during moments that can't be rescheduled, like a live worship service or broadcast

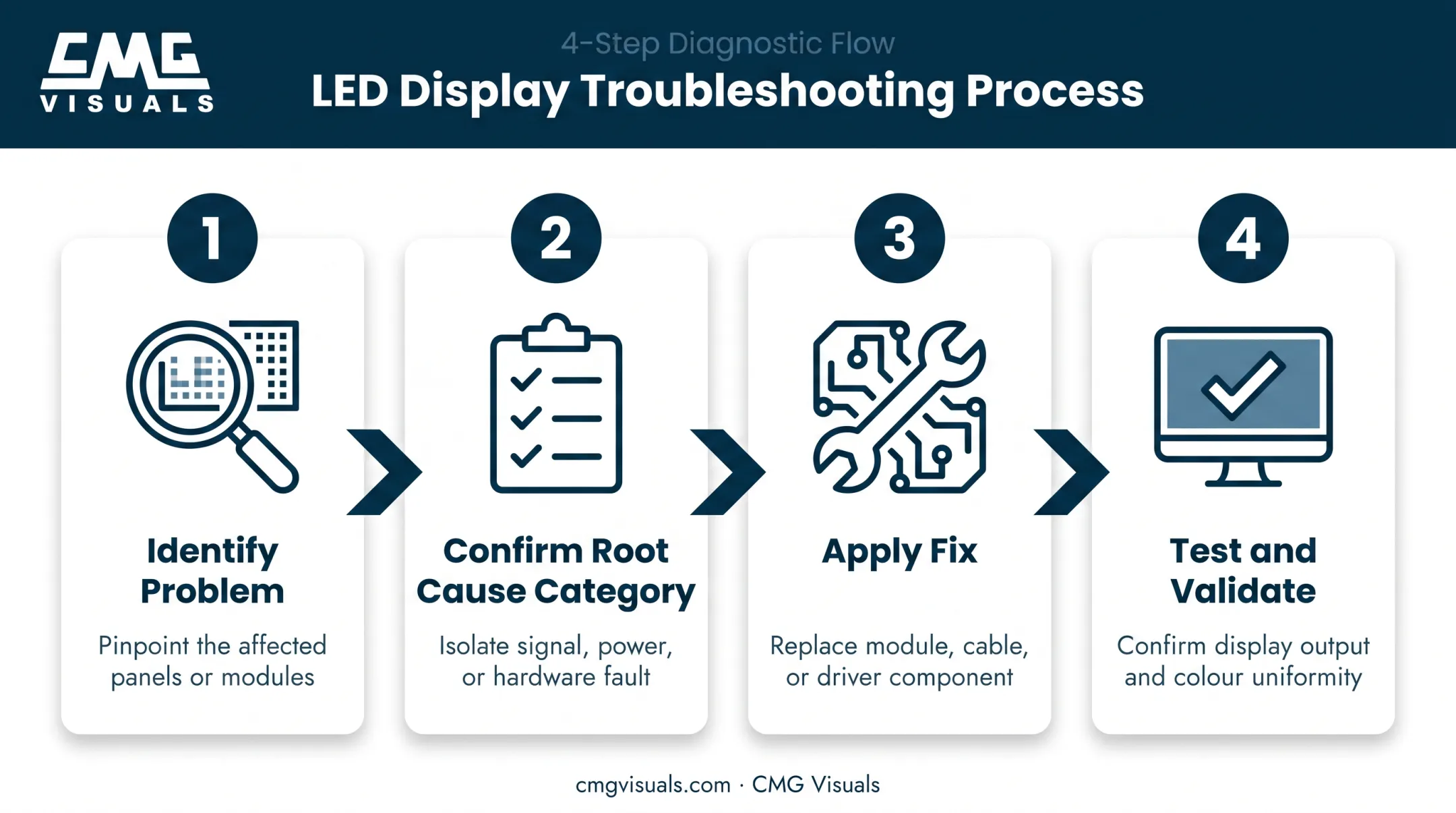

How to Fix an LED Display (Step-by-Step)
Jumping straight to repairs without pinpointing the exact issue wastes time, money, and sometimes damages components further. Work through these steps in order.
Step 1: Identify the Exact Problem
- Observe visible symptoms: blank screen, flicker, partial blackout, or color error
- Check power indicators, sending/receiving card LEDs, and any software alerts
- Note when the issue occurs (startup, under load, or intermittently)
- Document exactly which areas are affected: the whole screen, one cabinet, or a single module
Step 2: Confirm the Root Cause Category
Narrow the fault to one of four categories:
- Power issue
- Signal/cable issue
- Hardware fault
- Software/configuration problem
Rule out simple external factors first: a tripped breaker, a source device that's powered off, or an unplugged cable. Don't replace parts before you've confirmed the actual cause.
Step 3: Apply the Fix Based on the Problem
- Power issue: Check breakers, test power supply output with a multimeter, tighten loose terminals, replace a faulty PSU if needed
- Signal/cable issue: Reseat or replace HDMI/network cables, verify the sending box resolution matches your source output
- Hardware issue: Swap the suspected faulty receiving card, hub board, or module with a known-good spare to isolate the fault
- Software/configuration issue: Reload the correct configuration file, update firmware, or reset to factory defaults
Step 4: Test and Validate the Fix
Run the display under normal playback and watch for flicker, brightness inconsistency, or instability. Don't call it fixed after five minutes. Confirm the fix holds over an extended period before moving on.
When Should You Fix vs Replace Your LED Display?
Repair cost, display age, and downtime risk all factor into this decision.
| Scenario | Fix | Replace |
|---|---|---|
| Single faulty module or card | Swap the module, hub board, or receiving card | Only if the display is old and modules are discontinued |
| Frequent recurring failures | Address the root cause once (power, cabling, ventilation) | If out of warranty and failures keep recurring across components |
| Nearing end of lifespan | Patch minor issues if under 5-7 years old | If brightness/color has visibly degraded past useful life |
| Mission-critical applications | For minor, isolated issues, especially under a strong warranty | If repeated downtime threatens events, broadcasts, or services |
CMG Visuals prioritizes repair when it is the practical option. At Methodist Hospital Dallas, technicians sourced discontinued hub cards, repaired dead pixels, replaced failed IC chips, and replenished spare-module stock—restoring the display within days instead of a full teardown.
Every CMG-sold screen also includes a 5-year hardware warranty and spare parts at purchase, so component-level repair is usually the first move.
Common Mistakes to Avoid When Troubleshooting
Rushing diagnostics often creates more downtime than the original fault. Avoid these common traps:
- Assuming hardware failure too fast — a blank screen is often just a power or signal issue, not a dead panel
- Skipping post-repair testing — incomplete verification leads to repeat failures and wasted labor on the same wall
- Using mismatched replacement parts — modules from a different production batch or brand often create new problems, even if they physically fit
- Ignoring safety procedures — working on live modules risks shock, shorted cards, and further panel damage
Preventive Measures to Avoid Future LED Display Issues
Preventive maintenance costs far less than emergency repairs. Build these habits into routine operations:
- Schedule regular visual inspections and cable checks to catch loose connections early
- Keep firmware and control software updated and calibrated for consistent color and brightness
- Maintain proper ventilation and stable power: AVIXA recommends inspecting cooling systems—filters, fans, and temperature sensors
- Work with certified engineers for installation and ongoing support
CMG Visuals' NovaStar-certified team provides remote monitoring, troubleshooting, and operator training so client teams catch small issues before they become downtime. At RV Station, cloud-connected remote monitoring was built in for that reason.
Conclusion
Most LED display issues are fixable once you correctly diagnose the root cause. Power, signal, and hardware checks resolve the vast majority of problems without a full replacement.
Knowing when to fix versus replace—and having certified support on call—cuts repair costs and downtime.
Frequently Asked Questions
Why did my LED display suddenly stop working?
Sudden failure usually comes from power loss, a loose or damaged cable, a faulty control card, or a software glitch. Overheating can also trigger a sudden shutdown.
What should I do first if my LED display goes completely black?
Check the power supply, breakers, and signal source before assuming hardware failure. Then check the sending/receiving card indicator lights for clues.
Can a flickering LED display be fixed without professional help?
Reseating cables and checking power stability often resolves minor flickering. Persistent flicker after those checks usually points to a card-level fault needing a certified technician.
How often should an LED display be inspected or maintained?
Run a quick visual check every month. Review firmware and calibration at least twice a year so small issues don’t turn into unexpected failures.
Is it cheaper to repair or replace a malfunctioning LED display?
Isolated module or card issues are almost always cheaper to repair. Displays with recurring failures or expired warranties may cost less to replace over time.
When should I call a certified LED technician instead of troubleshooting myself?
Call a technician when the issue persists after basic checks, involves internal hardware like driver ICs, or affects a display where downtime simply isn't an option.
