But buying one isn't simple. Terms like pixel pitch, resolution, and viewing distance confuse even seasoned buyers. Get the specs wrong, and you'll either overspend on resolution nobody needs or install a screen that looks pixelated up close.
This guide breaks down what pixel LED signs actually are, how to pick the right specs for your space, and where these displays show up most often across US commercial environments.
Key Takeaways
- Pixel pitch (in mm) sets both resolution and the minimum viewing distance for a sharp image
- Indoor and outdoor displays require different brightness levels and weatherproofing
- Worship centers, broadcast studios, and retail floors each need distinct specs—not one generic panel
- An independent, certified provider matches specs to your actual space, not their inventory
What Is a Pixel LED Sign or Display?
A pixel is the smallest controllable point of light on an LED display. Each one is typically made up of red, green, and blue diodes that combine to produce every color you see on screen.
Thousands of pixels arranged in a tight grid work together to form images, video, and text. The smaller and denser the grid, the sharper the image. That density is measured as pixel pitch—the physical distance between adjacent pixels, as manufacturers such as Absen define it.
These displays go by several names, all pointing to the same core technology:
- LED video walls
- Digital signage boards
- LED video displays
- Pixel LED signs
DIP, SMD, and COB: What's the Difference?
LED displays use different packaging technologies, and each comes with tradeoffs:
- DIP (Dual In-line Package): Older, rugged build often used on outdoor billboards
- SMD (Surface-Mounted Device): More flexible and typically lower cost; common in fine-pitch displays
- COB (Chip-on-Board): Higher durability with stronger dust and moisture protection
At CMG Visuals, product recommendations are based on your specific pixel pitch, brightness, and configuration needs rather than pushing one packaging type. A St. Luke's Episcopal Church upgrade, for example, moved from a P10 to a P6.67 pixel pitch specifically to sharpen image clarity for outdoor viewing.
That same demand for clearer, brighter outdoor and public-facing visuals shows up in the broader market. US digital out-of-home revenue represented 36.3% of total out-of-home ad spend in 2025 and grew 10.5% year over year, according to OAAA's 2025 revenue report. Growth at that scale tracks with rising LED adoption in advertising, worship, corporate, and event spaces.
Understanding Pixel Pitch and Why It Matters
Pixel pitch is the distance, in millimeters, between the center of one pixel and the center of the next. Smaller pitch packs more pixels into the same space, raising resolution—and usually cost. Match pitch to real viewing distance so you pay for detail people can actually see.

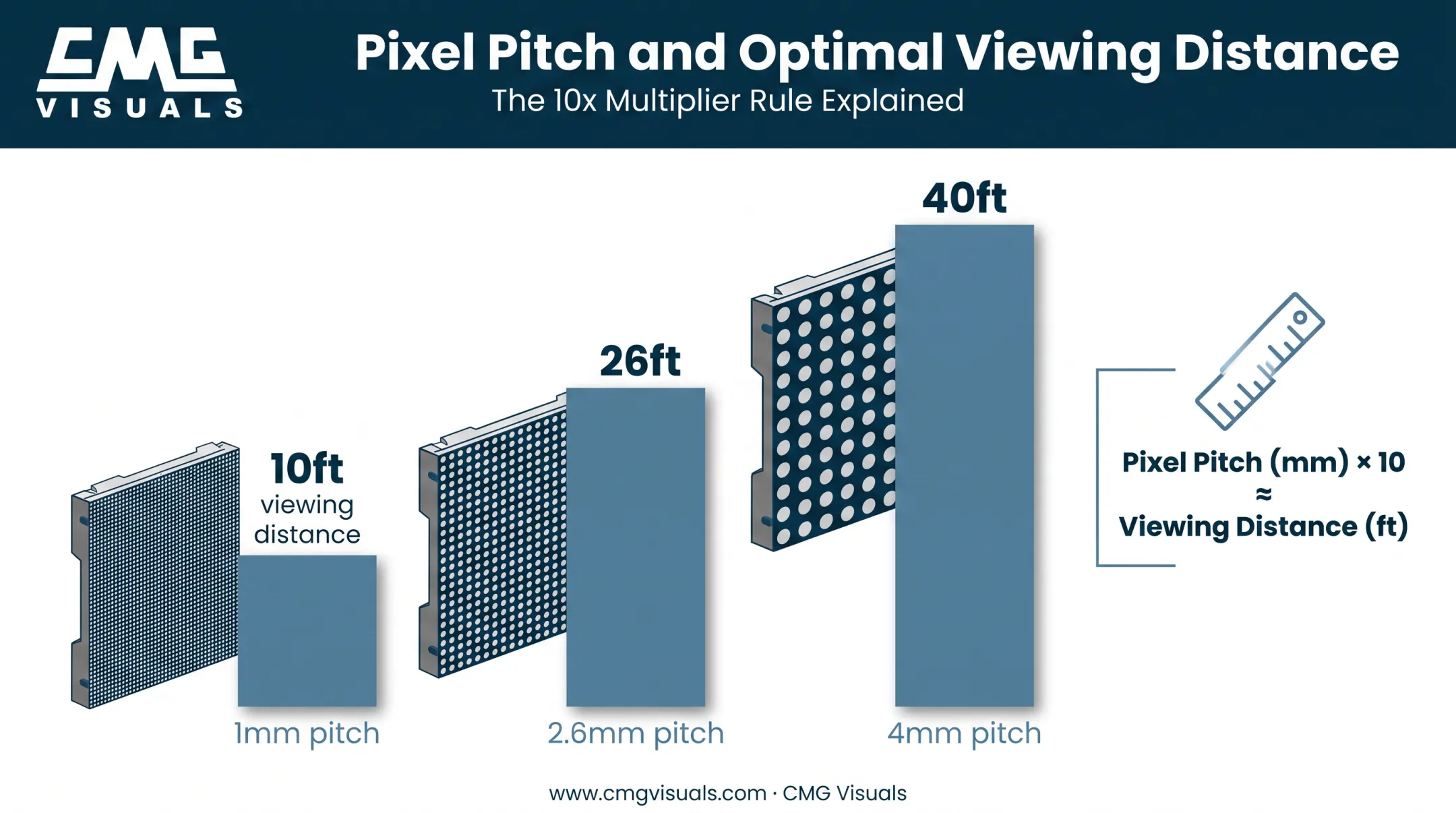

Planar's widely cited rule of thumb: approximate minimum viewing distance in feet equals pixel pitch in millimeters multiplied by 10. A 2.5mm display, for instance, should generally be viewed from at least 25 feet away for the pixel structure to disappear.
Is 2.6mm Pixel Pitch Good?
Yes, for the right setting. That 10× rule is when individual pixels fully disappear. For many indoor spaces, a 2.6mm pitch still looks sharp from about 8–10 feet, which makes it a strong fit for:
- Conference rooms and boardrooms
- Retail counters and lobbies
- Control rooms
- Small-to-mid-sized worship spaces
CMG Visuals used exactly this pitch for the Keystone Church installation in Mesquite, Texas, an 18x10-foot video wall driven by a NovaStar VX1000 Pro processor.
Pixel Pitch Ranges at a Glance
| Pitch Range | Best For |
|---|---|
| Under 1mm (fine pitch) | Close-up viewing, broadcast, control rooms |
| 1.5mm–2.6mm (mid-range) | Worship, corporate, retail, conference rooms |
| 4mm+ (coarse pitch) | Large venues, outdoor signage, stadiums |
Those ranges are starting points. CMG Visuals' NovaStar-certified engineers size pitch to your measured viewing distance and content type.
Get the match wrong and the tradeoffs show up fast:
- Too fine for a long throw — you spend more on resolution the audience never resolves
- Too coarse for close viewing — pixel structure stays visible and the wall looks unfinished
Indoor vs. Outdoor Pixel LED Displays
Outdoor displays need more brightness to stay visible under direct sunlight. Samsung's guidance suggests standalone indoor signage typically needs 350-500 nits, while outdoor units in bright conditions can require 4,000 nits or more.
CMG Visuals' own product data reflects a similar gap:
- Indoor displays: approximately 800-1,000+ nits
- Outdoor displays: approximately 5,000-10,000 nits
One 101OF outdoor fixed installation, for example, reached up to 10,000 nits with a P6.67 pixel pitch.
Weatherproofing matters just as much as brightness. Outdoor units need protection against rain, humidity, dust, and temperature swings. Industry IP ratings (based on the IEC 60529 standard) measure this resistance. Always confirm the exact rating for the specific product configuration rather than assuming it from a general spec sheet.
Outdoor signs also tend to use a slightly larger pixel pitch. Since viewing distances outdoors are usually greater (think highway signs or stadium boards), that extra millimeter or two of spacing doesn't hurt image quality and helps control cost.
Where Pixel LED Signs and Displays Are Used
Pixel LED technology serves commercial environments with very different viewing distances, content needs, and install constraints.
Houses of worship rely on LED video walls for lyrics, sermon graphics, and livestreaming. CMG Visuals installed three 1609 Series P1.5 screens totaling over 163 square feet at Grace Avenue Methodist Church in Frisco, Texas, positioned around the sanctuary stage.
Broadcast studios use fine-pitch displays for virtual sets, on-camera branding, and control rooms. A BCB Live studio project in Mansfield ran a 1.2mm pixel pitch wall at 6144x1920 resolution, with split-screen and backlighting effects for a live audience.
Corporate environments put the same fine-pitch class of wall to work for presentations and brand presence. Compass Datacenters installed a 0.9mm all-in-one LED video wall integrated with a video processor and Sonos audio for near-4K corporate presentations.
Retail, hospitality, and event venues use LED walls for dynamic advertising, menu or wayfinding content, and immersive guest experiences where motion and brightness matter more than a static poster.
Tradeshows and rentals need displays that go up fast and make an impact temporarily. CMG Visuals supplied a 242-square-foot P2.6mm rental system for the Dallas Mavericks Draft Party at American Airlines Center, complete with NovaStar Taurus processors and 5G routers for real-time graphics.
Each of these installs—worship, broadcast, corporate, and live events—uses the same core pixel-LED building blocks, configured for the room, the audience, and the content schedule.
Key Factors to Consider Before Buying
Before signing a contract, weigh these factors carefully.
Content type and refresh rate
Static images tolerate lower refresh rates; fast-motion video or on-camera use demands higher ones. CMG Visuals typically recommends refresh rates of at least 3,800–7,680 Hz for broadcast or camera-facing applications to avoid flicker.
Warranty and support
Many resellers offer thin coverage, sometimes without US-based support or 24/7 responsiveness. CMG Visuals includes:
- A 5-year hardware warranty
- Lifetime product support
- Spare parts included with every order
- 24/7 troubleshooting access
Installation and calibration
Professional calibration checks alignment, brightness, color accuracy, and system stability. On an RV Station project in Oklahoma, technicians calibrated brightness and gamma settings on a 238-square-foot outdoor display for both day and night highway visibility. DIY installations rarely account for this level of tuning.
Direct sourcing and total cost
Direct sourcing also shapes what you pay. CMG Visuals works with Tier 1 OEM suppliers directly, cutting out layered distributor markup while still backing every screen with a 5-year hardware warranty and lifetime product support.
Working With an LED Display Expert
Choosing the right LED provider matters as much as the hardware itself. Brand-locked resellers are often obligated to push whatever inventory their distributor agreement covers, whether or not it's the best fit for your space.
An independent provider can recommend based purely on your viewing distance, budget, and use case.

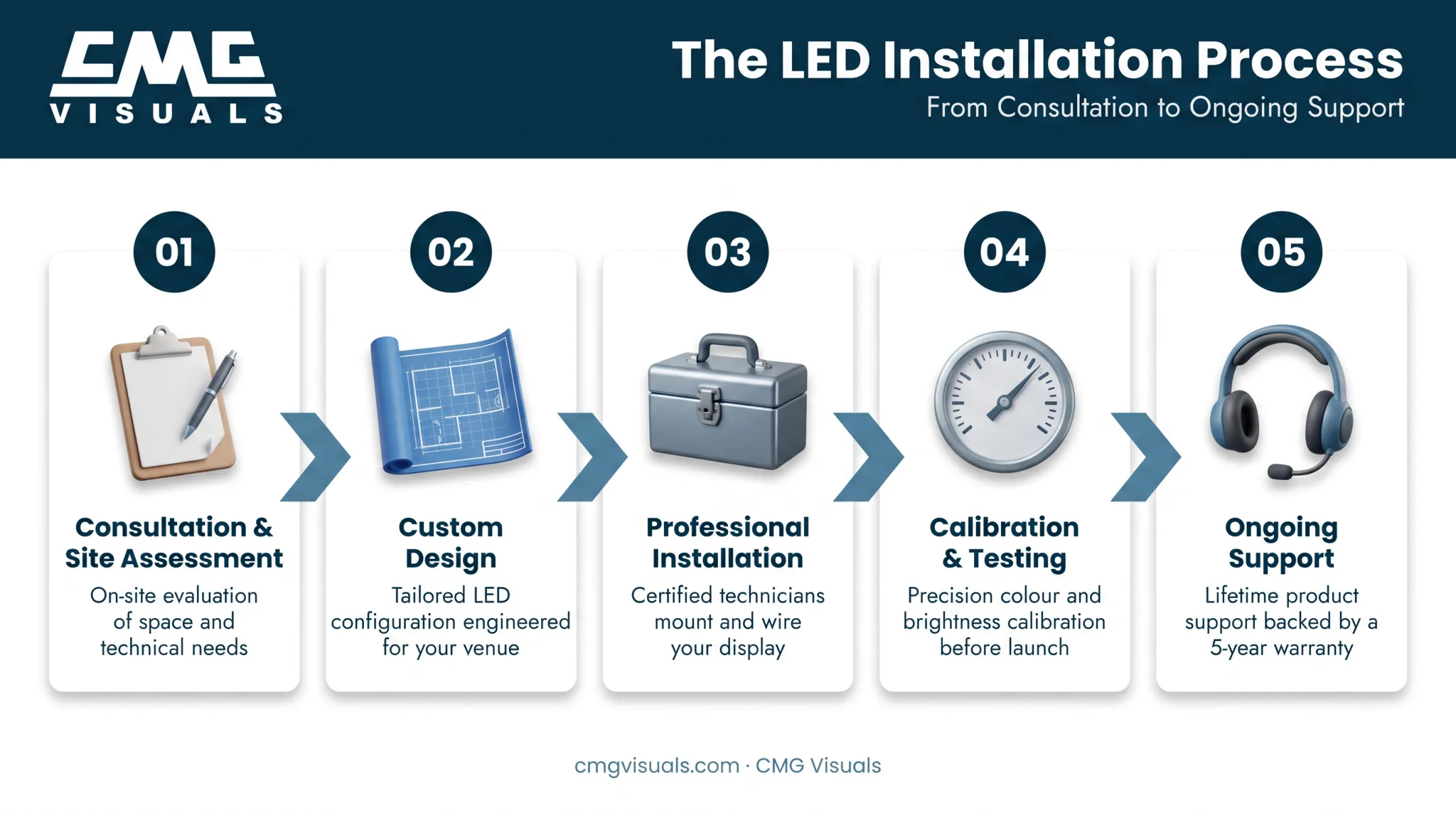

CMG Visuals operates this way:
- Consultation and site assessment — engineers evaluate lighting, viewing distance, and technical constraints
- Custom design — pixel pitch, brightness, and configuration specified for your exact space
- Professional installation — mounting, wiring, power, and software integration handled on-site
- Calibration and testing — brightness, color accuracy, and color temperature fine-tuned before handoff
- Ongoing support — 24/7 troubleshooting, module repair, and system upgrades as needed
NovaStar-certified technicians handle each stage, which matters most during calibration. A WAC Lighting installation using 36 individual 0.9mm panels required a test-pattern grid to verify uniform brightness and color synchronization across every panel. That level of detail separates a professional install from a DIY attempt.
CMG Visuals serves organizations across Texas and nationwide, from Dallas-Fort Worth churches to broadcast studios and stadium venues.
Frequently Asked Questions
Is 2.6 pixel pitch good?
Yes, for indoor viewing distances of about 8–10 feet. It's a strong choice for conference rooms, lobbies, and retail displays where viewers stand relatively close but not right up against the screen.
What is a pixel in LED?
A pixel is the smallest light-emitting unit on an LED display, made up of red, green, and blue diodes. Thousands of these combine in a grid to create the images, video, and text you see on screen.
What are those LED signs called?
Depending on the use case, they're called LED video walls, digital signage displays, or pixel LED signs. All three terms generally describe the same underlying technology.
How do I choose the right pixel pitch for my space?
Use the rule of thumb that minimum viewing distance in feet is about pixel pitch in millimeters times 3 to 4 (so 2.6 mm ≈ 8–10 feet). For a precise match, have an LED specialist assess your space and content.
How much does a pixel LED display cost?
Cost depends on pixel pitch, screen size, and brightness requirements. Turnkey installations typically start around $15,000, and direct-sourced providers often price below traditional reseller channels.
How long do pixel LED signs last?
Most LED displays are rated for roughly 50,000 to 100,000 hours of use, or about 10 years under typical conditions. Proper installation, calibration, and warranty coverage all help extend that usable life.
